Ingersoll Rand Hydraulic Cylinder Rebuild Kit DN63 CD8D Replacement – 54386545

Ingersoll Rand 54386545 – Hydraulic Cylinder Rebuild Kit DN63 CD8D

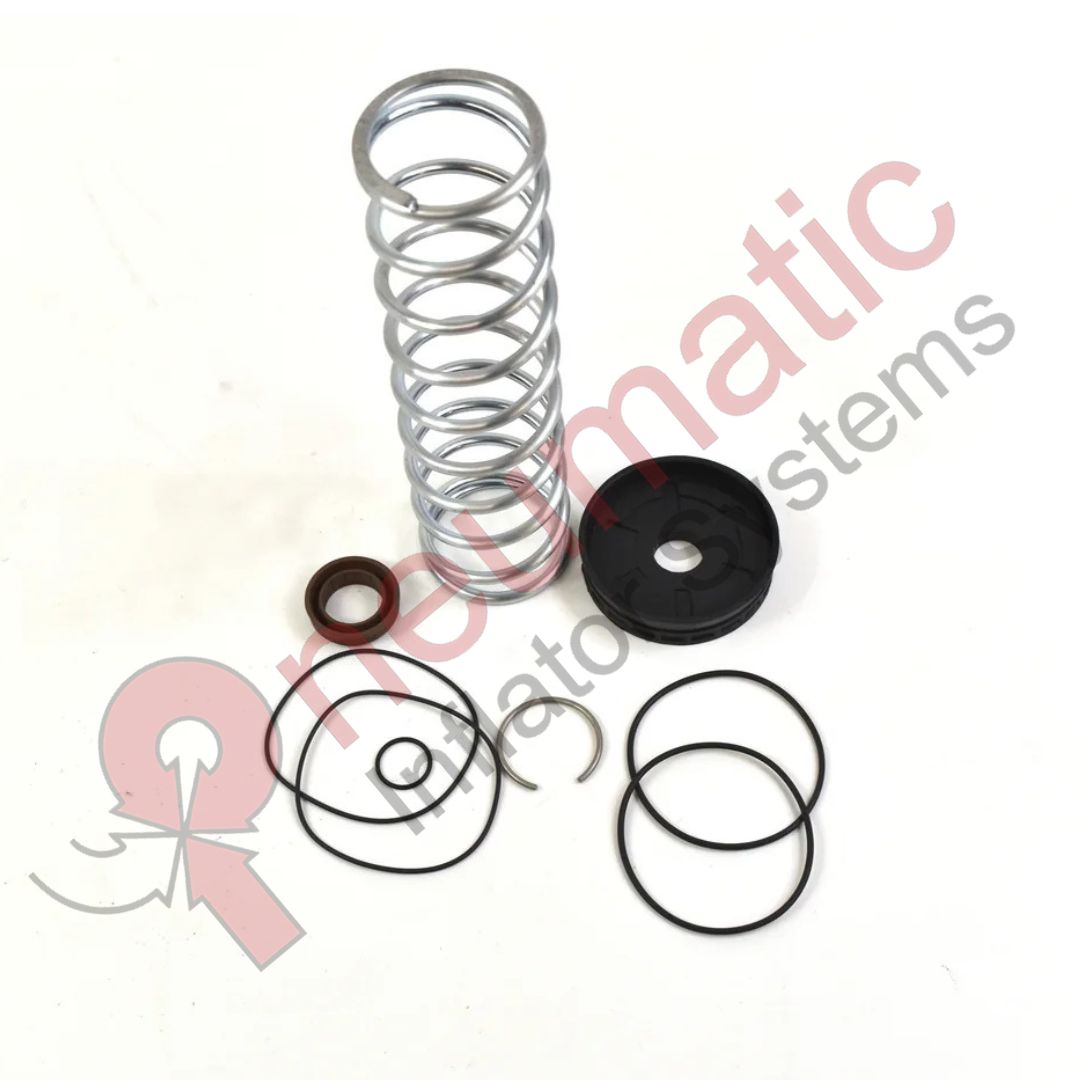

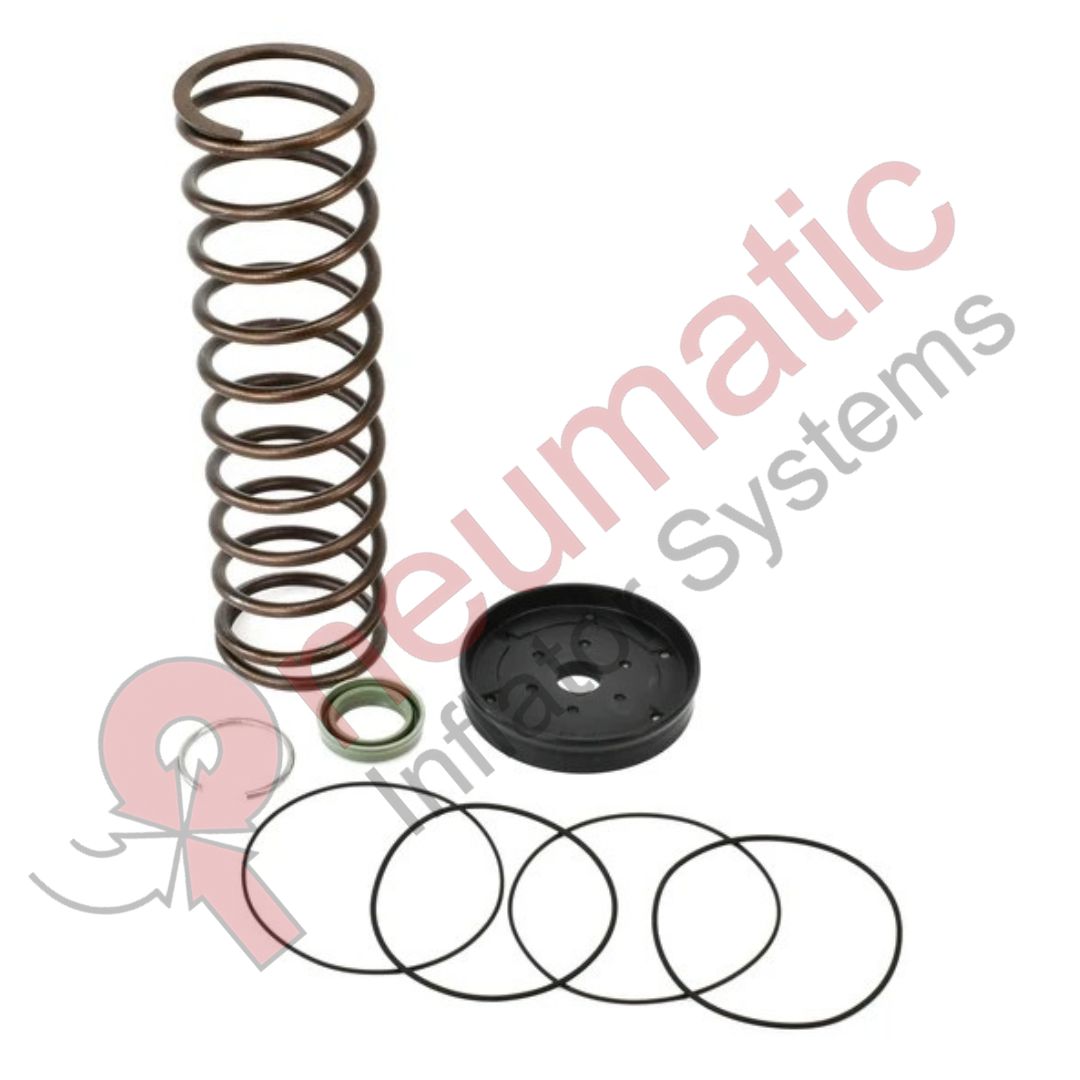

The Ingersoll Rand 54386545 Hydraulic Cylinder Rebuild Kit is a service kit designed to restore the sealing and operating performance of a hydraulic cylinder used in compatible Ingersoll Rand compressor equipment. The kit is identified as a Hydraulic Cylinder Rebuild Kit DN63 CD8D and is used to replace worn internal sealing and service components during cylinder maintenance.

Working Process:

The hydraulic cylinder converts hydraulic pressure into controlled mechanical movement. Hydraulic fluid is supplied to the cylinder under pressure, acting against the piston and generating a linear force.

When hydraulic pressure is applied to the appropriate side of the piston, the piston moves inside the cylinder bore. The piston movement is transferred through the cylinder rod to the connected compressor mechanism, allowing the associated component to move between its required operating positions.

The cylinder seals maintain hydraulic pressure on the correct side of the piston. They prevent hydraulic fluid from bypassing the piston and also prevent external leakage around the cylinder rod.

During normal operation, the hydraulic cylinder repeatedly extends and retracts according to the compressor control sequence. This exposes the seals, piston, rod, and cylinder bore to pressure fluctuations, friction, temperature changes, and continuous mechanical movement.

Over time, cylinder seals can harden, wear, become damaged, or lose their ability to maintain pressure. Internal leakage may then develop across the piston, while external leakage may occur around the cylinder rod.

The 54386545 rebuild kit is used to restore the cylinder by replacing the worn service components. References identify the part as “Kit Hydraulic Cylinder Rebuild DN63 CD8D” and as an Ingersoll Rand hydraulic-cylinder rebuild kit.

During maintenance, the hydraulic system must be shut down, isolated, and the hydraulic pressure completely released before the cylinder is dismantled. The cylinder should be removed according to the applicable Ingersoll Rand service procedure.

The cylinder is then disassembled and the piston, rod, cylinder bore, seals, and other internal components are inspected. The bore and rod surface should be checked for scoring, corrosion, excessive wear, or damage because damaged surfaces can quickly cause failure of newly installed seals.

The worn sealing and service components are replaced using the parts supplied in the 54386545 rebuild kit. Correct installation and orientation of each seal is essential because incorrect installation can cause internal leakage, external oil leakage, or premature seal failure.

After rebuilding, the cylinder is reassembled and installed back into the compressor system. Hydraulic connections should be checked carefully for proper sealing and correct routing.

The compressor should then be operated through its complete control sequence. The hydraulic cylinder should extend and retract smoothly without abnormal noise, hydraulic leakage, sticking, or loss of movement.

A worn hydraulic cylinder can cause slow or incomplete actuator movement, hydraulic-fluid leakage, loss of operating force, unstable compressor control, or failure of the connected mechanism to reach its required position.

Correct maintenance using the 54386545 Hydraulic Cylinder Rebuild Kit helps restore hydraulic pressure retention, smooth cylinder movement, reliable actuation, reduced leakage, and dependable compressor operation.

Part Number: 54386545
Brand: Ingersoll Rand
Part Description: Hydraulic Cylinder Rebuild Kit / Cylinder Repair Kit
Assembly: DN63 CD8D
Component Type: Hydraulic cylinder service/rebuild kit
Primary Function: Restores worn hydraulic-cylinder sealing and service components
Operating Function: Maintains hydraulic pressure and enables reliable linear actuator movement
Maintenance Function: Replaces worn seals and associated cylinder service components
Main Benefits: Reduced hydraulic leakage, restored pressure retention, smooth actuator movement, improved control reliability, and extended cylinder service life.
