Atlas Copco Solenoid Valve Replacement – 2200599753

Atlas Copco 2200599753 – Solenoid Valve

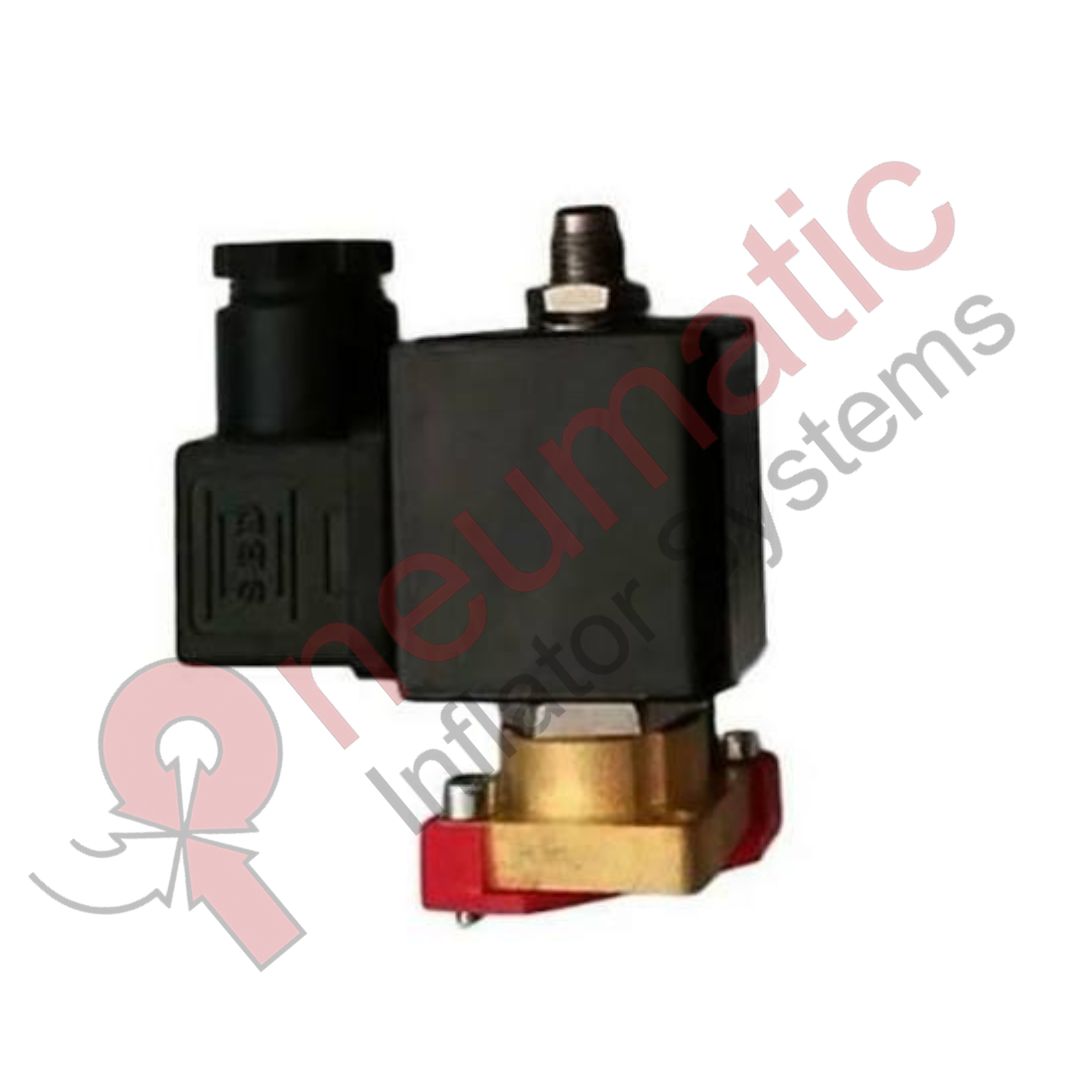

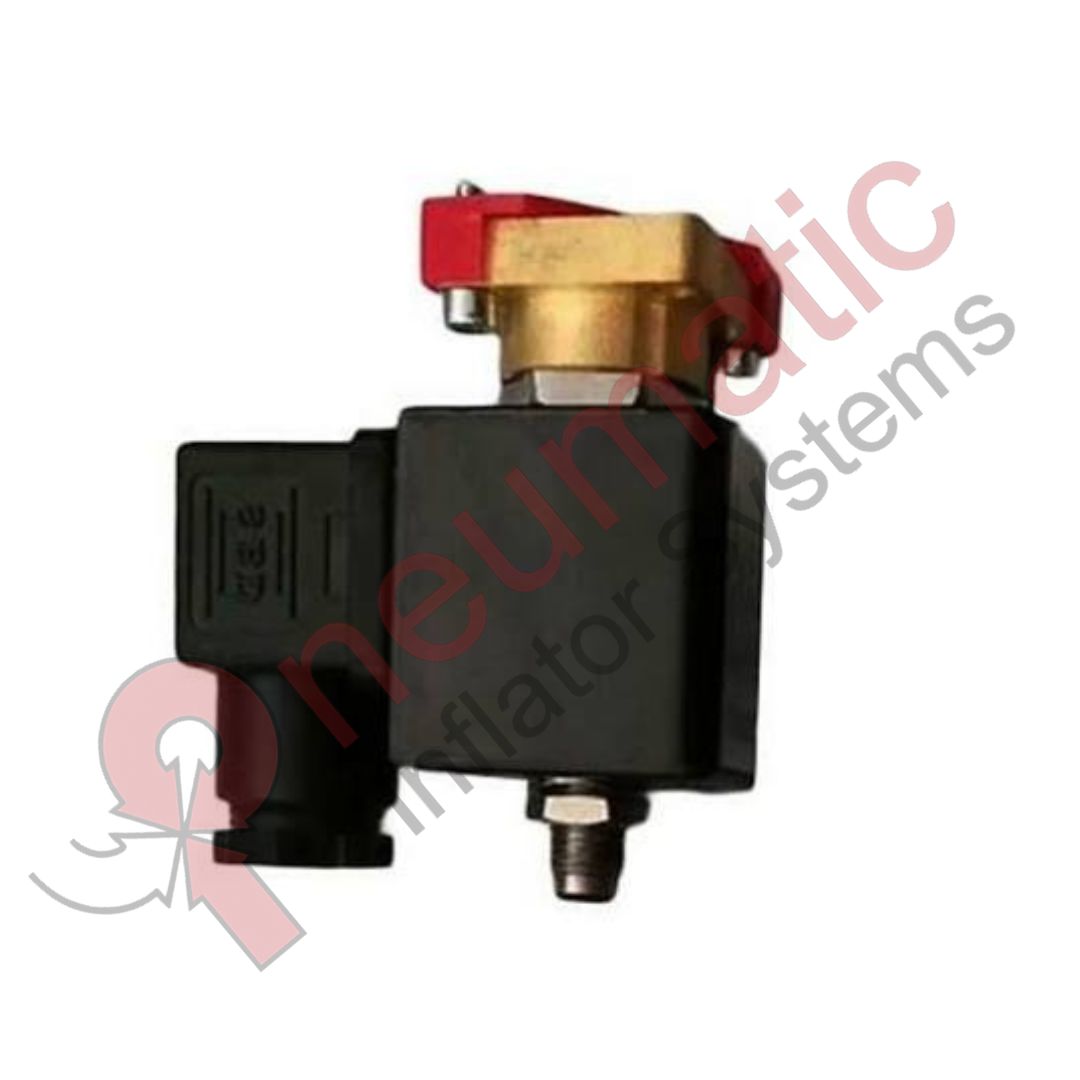

The Atlas Copco 2200599753 (2200-5997-53) Solenoid Valve is an electrically operated control valve used in compressor pneumatic and control circuits. Its primary function is to control the flow of compressed air or control pressure to other compressor components according to an electrical command from the compressor’s control system.

Working Process:
During normal compressor operation, the compressor controller sends an electrical signal to the solenoid coil when a particular pneumatic function needs to be activated. When the coil is energized, it produces a magnetic field that moves the internal plunger or armature. This movement changes the valve’s internal flow path, allowing or stopping compressed air from passing through the valve.

The controlled air signal is then directed toward the appropriate pneumatic component, such as an inlet control mechanism, unloading system, actuator, or other pressure-control device. When the electrical signal is removed, the magnetic field disappears and the valve returns to its normal position, normally through spring action. This stops or redirects the control-air flow.

By repeatedly opening, closing, or changing the pneumatic path in response to electrical commands, the solenoid valve allows the compressor’s electronic controller to operate pneumatic functions automatically. This helps coordinate compressor loading and unloading, pressure regulation, starting and stopping sequences, and other control operations depending on the machine configuration.

A properly functioning solenoid valve provides fast and reliable switching of the control-air circuit. If the valve becomes contaminated, electrically damaged, mechanically stuck, or develops internal leakage, the controlled pneumatic component may not operate correctly. This can result in problems such as incorrect loading/unloading, pressure-control issues, unstable operation, or failure of the associated actuator.

During maintenance, the solenoid valve should be inspected for electrical continuity, correct coil operation, contamination, damaged seals, and proper movement of the internal valve mechanism. Replacement with the correct specification ensures reliable pneumatic control and helps maintain proper compressor operation.

Part Number: 2200599753
Alternative Part Number: 2200-5997-53 / 2200 5997 53
Part Description: Solenoid Valve
Brand: Atlas Copco / Chicago Pneumatic
Component Type: Electrically operated pneumatic control valve
Primary Function: Controls compressed-air/control-air flow using an electrical signal
Typical Application: Atlas Copco air compressor control system
Main Benefit: Enables automatic and precise control of pneumatic compressor functions

Disclaimer: All manufacturer names, trademarks, model numbers, and part numbers are used solely for identification and compatibility purposes. Our products are high-quality aftermarket replacement products and are not manufactured, sponsored, endorsed, or authorized by the original equipment manufacturer (OEM). All trademarks remain the property of their respective owners.
