Atlas Copco Inlet Valve Overhaul Kit Replacement – 2901110200

Atlas Copco 2901110200 – Inlet Valve Overhaul Kit

The Atlas Copco 2901110200 (2901-1102-00) is an Inlet Valve Overhaul Kit used to service and restore the inlet-valve assembly of compatible Atlas Copco compressors.

The inlet valve is a critical component of the compressor’s air-intake and capacity-control system. It regulates the amount of atmospheric air entering the compressor element and enables the compressor to transition between loaded and unloaded operating conditions.

The part is identified by multiple parts references as an Inlet Valve Overhaul Kit. It is specifically listed for ZT15–22 compressors by one OEM-parts supplier, while a procurement document identifies the same part number for a ZT37VSD application. Therefore, model/serial-number verification is recommended before installation.

Working Process:

During compressor operation, atmospheric air enters through the compressor inlet system.

When the compressor is required to produce compressed air, the control system positions the inlet valve toward its open position. This allows the required quantity of air to enter the compressor element.

The compressor element then compresses the incoming air and delivers the compressed air through the downstream compressor system.

When the required system pressure or operating condition is reached, the compressor control system initiates unloading or capacity reduction.

The inlet valve moves toward its restricted position, reducing the amount of atmospheric air entering the compressor element.

This reduces compressor output and prevents unnecessary compression when the compressed-air demand is low.

As downstream equipment consumes compressed air, system pressure decreases.

When the pressure reaches the programmed load condition, the control system commands the inlet valve back toward its operating position.

The valve opens and allows increased airflow into the compressor element, enabling the compressor to resume normal air production.

This automatic load/unload process allows the compressor to respond to changing compressed-air demand.

Main Functions:

• Controls compressor inlet-air flow.
• Supports compressor loading and unloading.
• Regulates compressor capacity.
• Helps maintain stable system pressure.
• Reduces unnecessary air intake during unloading.
• Maintains correct pneumatic/mechanical inlet-valve operation.
• Restores worn inlet-valve components during overhaul.
• Helps prevent air leakage through worn sealing components.

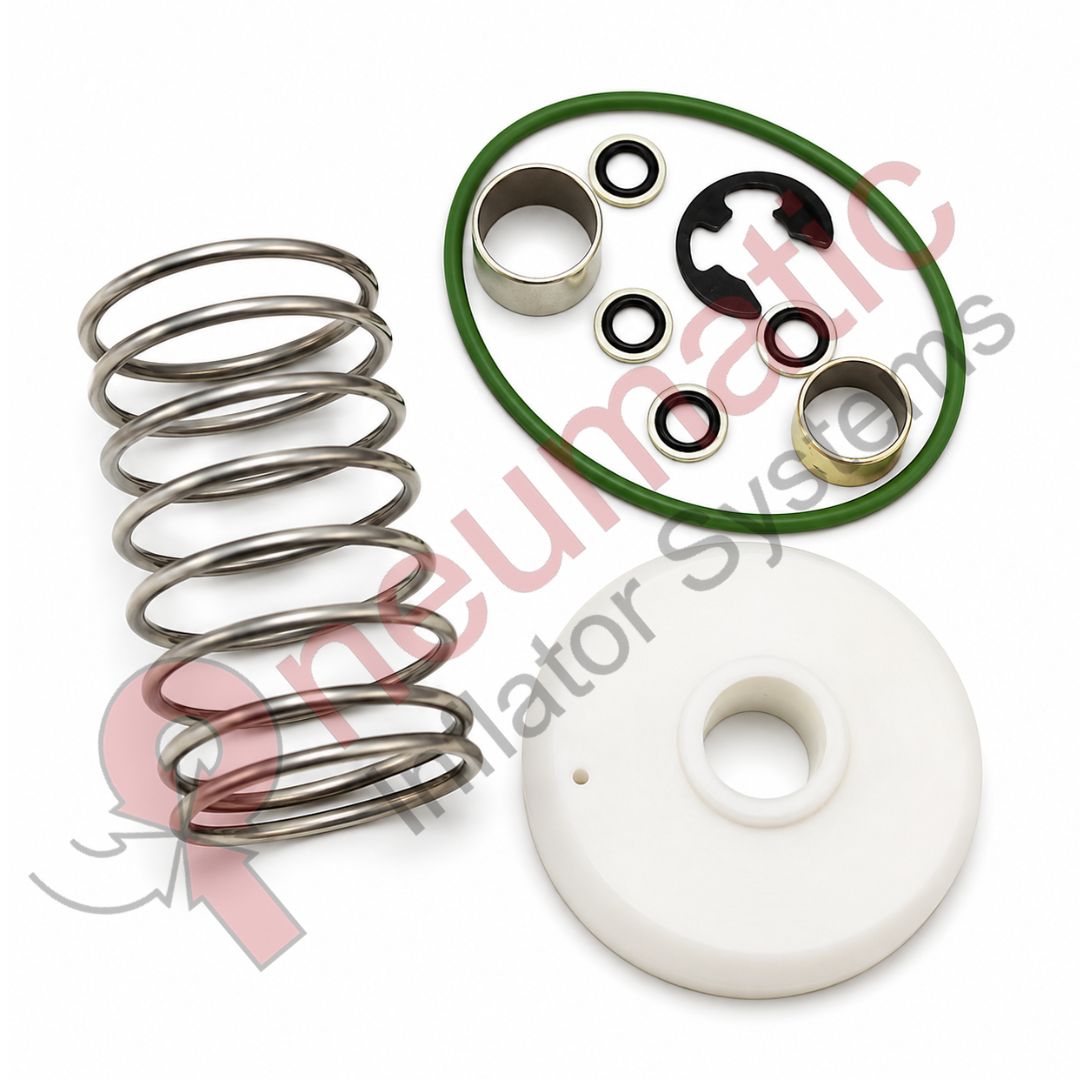

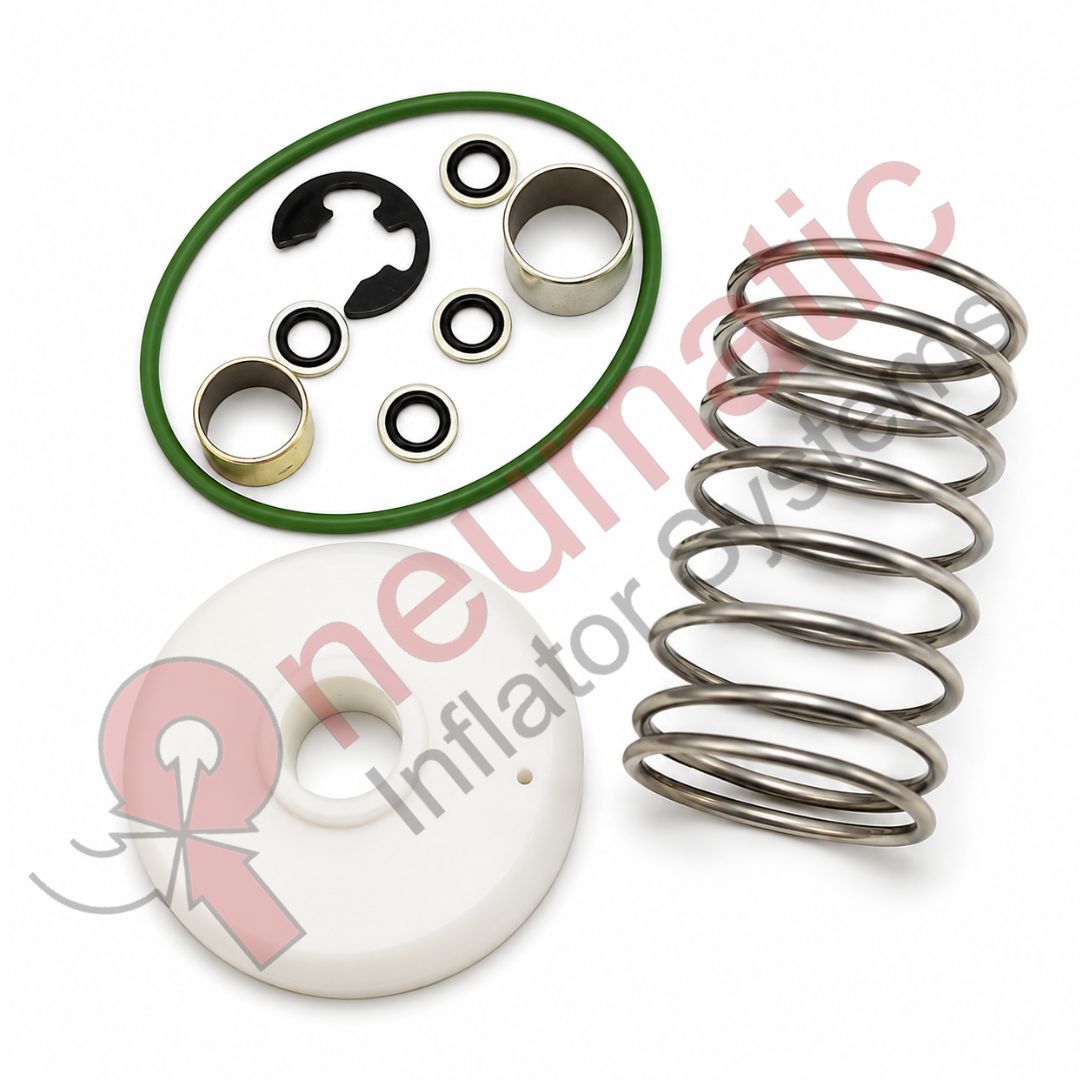

Typical Overhaul Kit Components:

Available component references for 2901110200 identify items including:

• Instruction manual
• Spring
• Shaft valve
• Gasket
• Bushing
• Circlip
• Nut

The exact kit contents can vary by equipment configuration, so the applicable Atlas Copco parts list should be checked against the compressor serial number before ordering or installation.

The shaft valve forms the main moving element of the inlet-valve mechanism and controls the passage of inlet air.

The spring provides the required mechanical return force and supports correct valve positioning.

The gasket provides sealing between mating surfaces and helps prevent unwanted air leakage.

The bushing supports the moving shaft and helps maintain correct alignment.

The circlip and nut retain and secure the relevant valve components.

The instruction manual provides the applicable overhaul and assembly information.

Operating Cycle:

1. Start-up: The inlet valve is placed in its required starting position.
2. Load Command: The compressor control system requests air production.
3. Valve Opening: The inlet valve opens to admit atmospheric air.
4. Compression: The compressor element compresses the incoming air.
5. Pressure Build-up: System pressure increases.
6. Unload Command: The controller initiates unloading when the required pressure condition is reached.
7. Valve Restriction: The inlet valve moves toward the restricted position.
8. Reduced Air Intake: Less air enters the compressor element.
9. Pressure Reduction: Downstream air consumption reduces system pressure.
10. Reload Command: The controller commands the inlet valve toward the open position.
11. Normal Operation: The compressor resumes the required air intake and compressed-air production.

The cycle repeats automatically according to air demand.

Importance of the Shaft Valve:

The shaft valve is responsible for controlling the physical inlet-air passage.

It must move smoothly and remain correctly aligned within the inlet-valve housing.

A worn or damaged shaft can cause excessive clearance, sticking or incorrect valve positioning.

This can result in poor compressor loading, reduced air delivery or incorrect unloading.

Role of the Spring:

The spring provides mechanical force to support the required valve position and return movement.

A weakened, broken or incorrectly installed spring can prevent the valve from reaching its correct operating position.

This may result in incomplete loading or unloading.

Role of the Gasket and Sealing Components:

The gasket maintains a sealed connection between the relevant valve components.

A damaged, hardened or incorrectly installed gasket can cause air leakage.

Air leakage can reduce control efficiency and may prevent the compressor from achieving the intended inlet-valve response.

Replacing the gasket during an overhaul helps restore the sealing performance of the valve assembly.

Role of the Bushing:

The bushing supports the moving shaft and helps maintain alignment.

A worn bushing can increase shaft movement and cause the valve to operate unevenly.

Excessive wear may also contribute to air leakage and mechanical sticking.

Possible Failure Conditions:

Long-term operation can cause wear, contamination and deterioration of inlet-valve components.

Possible problems include:

• Worn shaft valve
• Damaged or weak spring
• Hardened or damaged gasket
• Worn bushing
• Damaged retaining components
• Valve sticking
• Excessive shaft movement
• Air leakage
• Restricted inlet airflow
• Incorrect valve positioning

Typical compressor symptoms may include:

• Compressor fails to load.
• Compressor fails to unload.
• Slow pressure build-up.
• Reduced air delivery.
• Unstable operating pressure.
• Excessive power consumption.
• Continuous loaded operation.
• Delayed load/unload response.
• Inlet-air leakage.
• Abnormal compressor cycling.

If the inlet valve remains too restricted during loading, insufficient air enters the compressor element and output can decrease.

If the inlet valve remains too open during unloading, the compressor may continue processing unnecessary air and consume additional energy.

Maintenance Procedure:

Before servicing the inlet valve, the compressor must be stopped, electrically isolated and completely depressurized according to the applicable Atlas Copco safety procedure.

Inspect the complete inlet-valve assembly for:

• Shaft wear
• Bushing wear
• Spring condition
• Gasket deterioration
• Retaining-component damage
• Contamination
• Valve sticking
• Excessive mechanical clearance
• Air leakage

Remove the worn components carefully without damaging the valve housing or associated compressor parts.

Clean all mating and sealing surfaces before assembly.

Install the replacement components supplied in the 2901110200 Inlet Valve Overhaul Kit according to the applicable Atlas Copco assembly instructions.

Ensure that:

• The shaft valve is correctly positioned.
• The bushing is correctly installed.
• The spring is installed in the specified orientation.
• The gasket is correctly seated.
• Retaining components are properly secured.
• The valve moves smoothly without sticking.

After assembly, check the inlet-valve mechanism for unrestricted movement.

Restart the compressor and observe several complete operating cycles.

Verify:

• Correct loading.
• Correct unloading.
• Normal pressure build-up.
• Normal air delivery.
• Stable operating pressure.
• No abnormal air leakage.
• Smooth valve movement.
• Correct response to control commands.

A properly overhauled inlet valve restores the mechanical movement, sealing and airflow-control characteristics required for reliable compressor operation.

Using the Atlas Copco 2901110200 Inlet Valve Overhaul Kit during appropriate maintenance helps extend inlet-valve service life and restore reliable compressor capacity control.

Part Number: 2901110200
Alternative Number: 2901-1102-00 / 2901 1102 00
Brand: Atlas Copco
Official/Parts Description: Inlet Valve Overhaul Kit
Component Type: Inlet valve overhaul/service kit
Known Application: Atlas Copco ZT compressor systems
Referenced Application: ZT15–22; also documented for ZT37VSD
Primary Function: Controls compressor inlet-air flow
Secondary Function: Supports compressor loading/unloading and capacity regulation
Main Components Referenced: Shaft valve, spring, gasket, bushing, circlip, nut and instructions
Operating Function: Opens/restricts the compressor inlet according to the control condition
Main Benefits: Restored valve movement, improved sealing, reliable loading/unloading, controlled inlet airflow and dependable compressor operation.
