Atlas Copco Inlet Valve Kit ZA5 for Oil-Free Compressors Replacement – 2906051400

Atlas Copco 2906051400 – Inlet Valve Kit ZA5 for Oil-Free Compressors

The Atlas Copco 2906051400 (2906-0514-00) is an Inlet Valve Kit for ZA5 oil-free compressors. It is designed for maintenance and restoration of the compressor inlet-valve assembly and is used to maintain correct airflow control, pneumatic operation and compressor capacity regulation.

Atlas Copco identifies this kit for stationary oil-free compressors / ZA5 and recommends it for service intervals of up to 4,000 operating hours or 1 year. The official listed kit weight is 862 g.

The inlet valve controls the amount of atmospheric air entering the compressor. By regulating inlet airflow, the valve allows the compressor to operate at the required capacity and reduce airflow when full compression is not required.

Working Process:

During compressor operation, atmospheric air enters through the compressor inlet system.

When compressed-air production is required, the compressor control system positions the inlet valve toward the open position. This allows atmospheric air to enter the compressor element.

The compressor element compresses the incoming air and delivers the compressed air through the subsequent stages of the oil-free compression system.

When the compressor reaches the required operating condition or the control system requests reduced capacity, the inlet-valve mechanism changes position.

The valve restricts the incoming airflow, reducing the quantity of air entering the compression element. This reduces compressor output and prevents unnecessary compression during reduced-demand conditions.

When compressed-air demand increases again, the control system changes the pneumatic control signal.

The inlet valve responds by moving toward the open position, allowing increased airflow into the compressor element.

The compressor then resumes the required level of air production.

This automatic inlet-air regulation allows the ZA5 compressor to respond to changing compressed-air demand while maintaining efficient operation.

Main Functions:

• Controls atmospheric air entering the compressor.
• Regulates compressor capacity.
• Supports loaded and reduced-load operation.
• Controls inlet airflow according to the compressor control signal.
• Helps maintain stable compressor operation.
• Reduces unnecessary airflow during reduced-capacity operation.
• Maintains correct pneumatic control of the inlet valve.
• Restores inlet-valve sealing and operating performance during scheduled service.

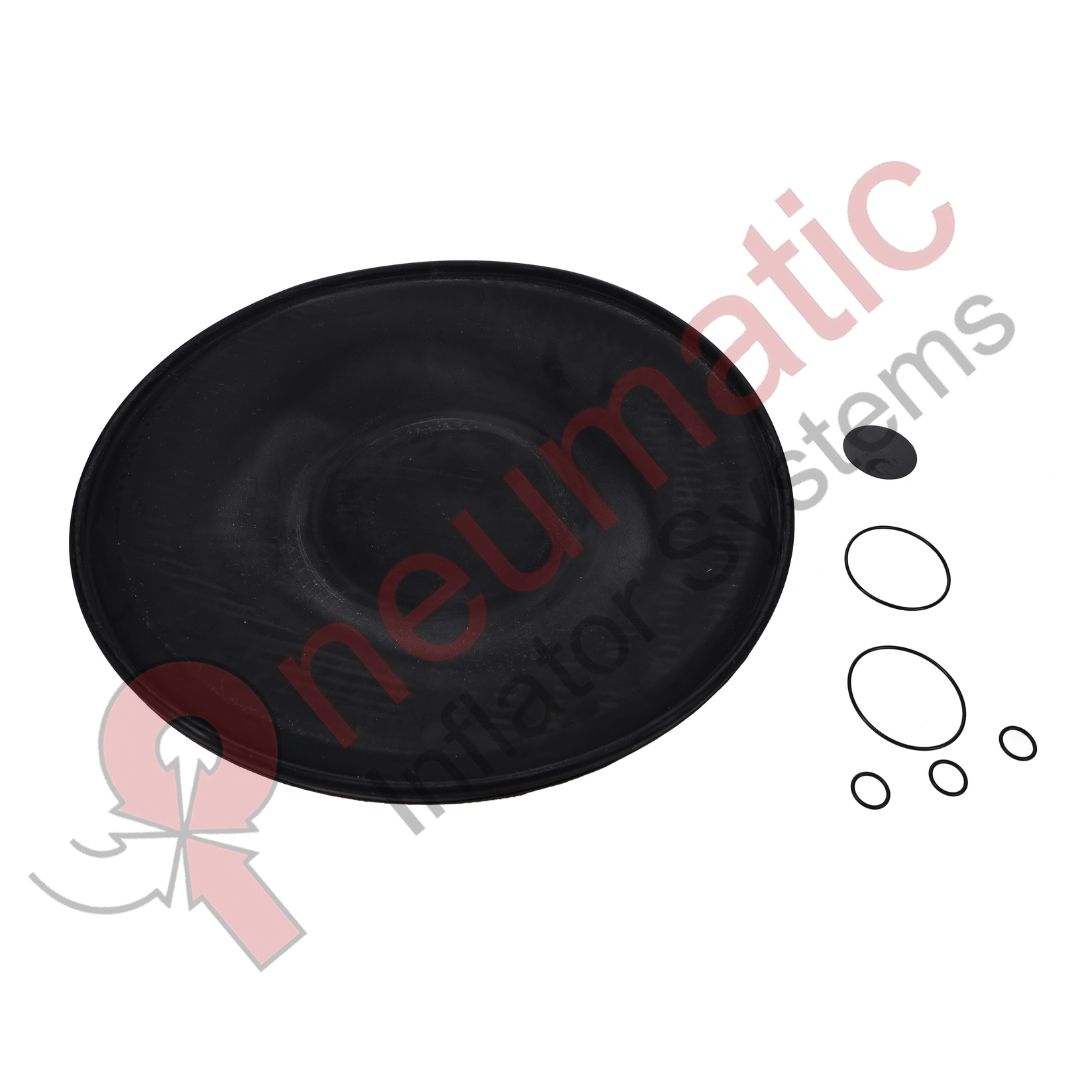

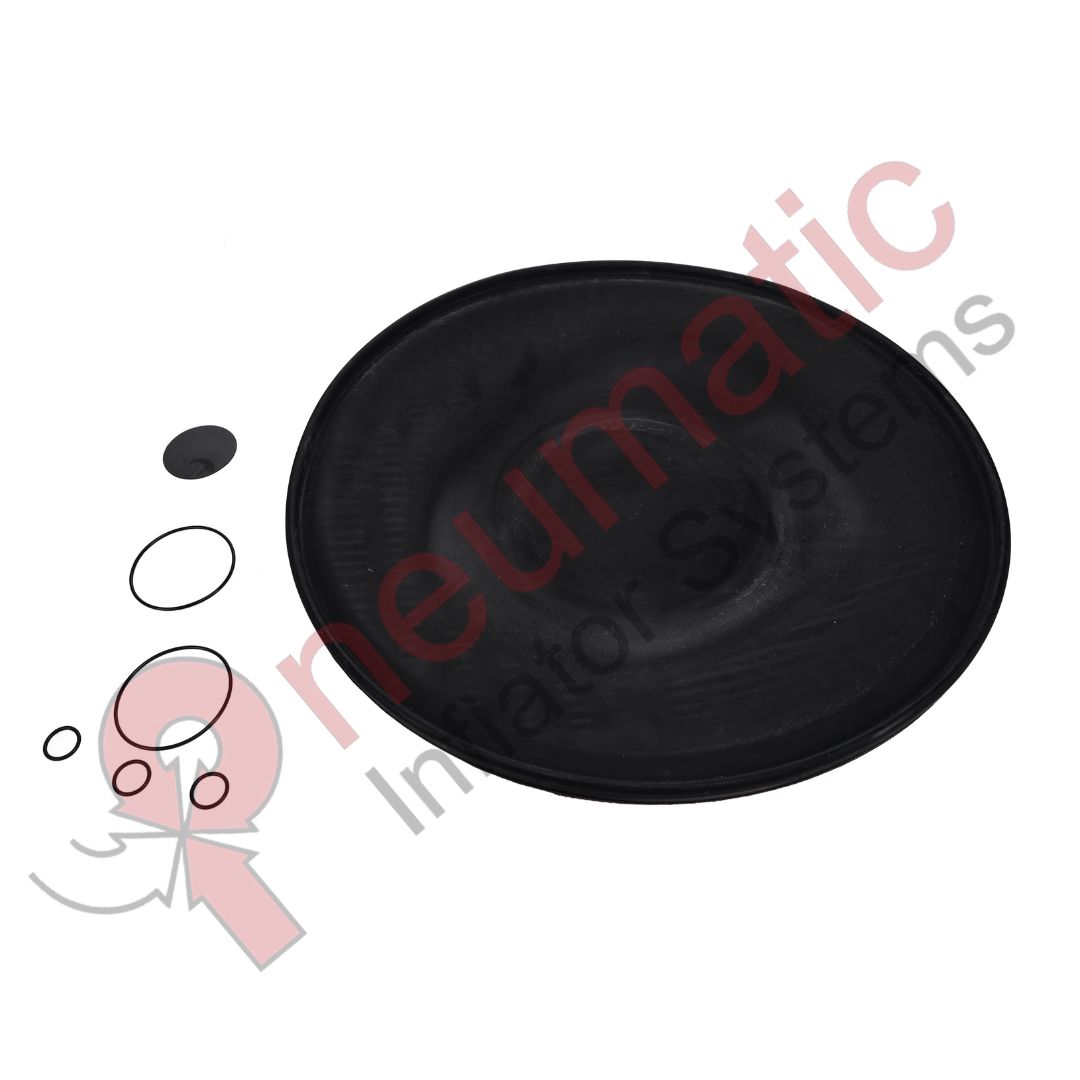

Official Kit Components:

Atlas Copco’s official catalog lists the following components for 2906051400:

• O-ring 16 × 2 – 3 pcs
• Diaphragm – 1 pc
• O-ring – 2 pcs
• Membrane – 1 pc

The O-rings provide sealing between the valve components and prevent unwanted pneumatic leakage.

The diaphragm and membrane are flexible control components that respond to pneumatic pressure and operate the inlet-valve mechanism.

The condition of these components is important for maintaining accurate valve movement and reliable compressor capacity control.

Operating Cycle:

1. Start-up: The inlet-valve assembly is placed in its required starting condition.
2. Loading: The valve opens sufficiently to allow atmospheric air into the compressor element.
3. Compression: Incoming air is compressed by the oil-free compressor element.
4. Capacity Control: The compressor controller monitors operating conditions.
5. Reduced Capacity: The inlet valve moves toward a restricted position when less compressor output is required.
6. Reduced Air Intake: Less atmospheric air enters the compressor element.
7. Demand Increase: The control system requests additional compressor capacity.
8. Pneumatic Actuation: Control pressure acts on the diaphragm and membrane.
9. Valve Opening: The inlet valve moves toward the open operating position.
10. Normal Production: Increased airflow enters the compressor element and compressor output is restored.

The cycle is automatically controlled according to compressor demand and operating conditions.

Role of the Diaphragm:

The diaphragm is a flexible pneumatic-control component inside the inlet-valve assembly.

Changes in control pressure act on the diaphragm and cause movement of the valve mechanism.

The diaphragm must remain flexible, correctly seated and free from cracks or deformation.

A damaged or hardened diaphragm can result in delayed or incomplete valve movement.

This may cause reduced compressor output, incorrect capacity control or unstable operation.

Role of the Membrane:

The membrane works together with the pneumatic control mechanism to transfer pressure changes into mechanical valve movement.

A damaged, cracked, hardened or incorrectly installed membrane can result in leakage or incorrect valve positioning.

This can prevent the compressor from responding correctly to load or capacity-control commands.

Role of O-Rings:

The O-rings provide airtight sealing between the valve components.

During normal operation, repeated pressure cycling and aging can cause O-rings to harden, flatten, crack or lose elasticity.

Damaged O-rings can allow control-air leakage and reduce the effectiveness of the inlet-valve control system.

Replacing the O-rings during scheduled service helps restore proper sealing and pneumatic response.

Possible Failure Conditions:

With prolonged operation, inlet-valve components may experience material aging, seal deterioration, contamination or mechanical wear.

Possible failure conditions include:

• Damaged O-rings
• Hardened O-rings
• Cracked diaphragm
• Damaged membrane
• Pneumatic leakage
• Incorrect valve movement
• Valve sticking
• Restricted airflow
• Delayed valve response
• Incorrect compressor capacity control

Typical compressor symptoms may include:

• Compressor fails to load correctly.
• Compressor fails to reduce capacity correctly.
• Reduced air delivery.
• Slow pressure build-up.
• Unstable compressor operation.
• Incorrect capacity regulation.
• Excessive air consumption.
• Pneumatic control leakage.
• Abnormal operating cycles.

If the inlet valve remains too restricted, insufficient air enters the compressor element and air output can decrease.

If the inlet valve remains too open during reduced-load operation, the compressor can process unnecessary air and consume additional energy.

Maintenance Procedure:

Before servicing the inlet valve, the compressor must be stopped, electrically isolated and completely depressurized according to the applicable Atlas Copco safety procedure.

Inspect the inlet-valve assembly for:

• Damaged O-rings
• Hardened seals
• Diaphragm deterioration
• Membrane damage
• Pneumatic leakage
• Contamination
• Restricted movement
• Incorrect valve response

Remove the old service components carefully without damaging the valve housing or sealing surfaces.

Install the components supplied in the 2906051400 Inlet Valve Kit according to the applicable Atlas Copco service instructions.

Clean all mating and sealing surfaces before assembly.

Install the O-rings without twisting, cutting, overstretching or pinching them.

Install the diaphragm and membrane in their correct positions and orientation.

Ensure that neither flexible component is folded, damaged or improperly seated.

Check the inlet-valve mechanism for smooth and unrestricted movement.

After assembly, restart the compressor and monitor several operating cycles.

Verify that:

• The inlet valve responds correctly to control pressure.
• The compressor loads normally.
• The compressor reduces capacity correctly.
• Air delivery is normal.
• Operating pressure is stable.
• No abnormal pneumatic leakage is present.
• Valve movement is smooth.

A properly serviced inlet valve ensures accurate control of airflow entering the compressor element and supports reliable and efficient ZA5 compressor operation.

Using the Atlas Copco 2906051400 Inlet Valve Kit during the recommended service interval helps restore sealing, diaphragm/membrane operation, pneumatic response and reliable inlet-air control.

Part Number: 2906051400
Alternative Number: 2906-0514-00 / 2906 0514 00
Brand: Atlas Copco
Official Description: Kit Valve Inlet ZA5 for Oil-Free Compressors
Application: Stationary oil-free compressors
Known Application: ZA5
Recommended Service Interval: Up to 4,000 operating hours or 1 year
Official Listed Weight: 862 g
Main Components: O-rings, diaphragm and membrane
Component Type: Inlet valve service/maintenance kit
Primary Function: Controls airflow entering the compressor element
Secondary Function: Supports compressor capacity and pneumatic control
Operating Function: Regulates inlet airflow according to the compressor control signal
Main Benefits: Reliable inlet-air control, improved pneumatic sealing, stable capacity regulation, proper valve response and dependable compressor operation.
