Tamrotor Inlet Valve Repair Kit Replacement – NT1683

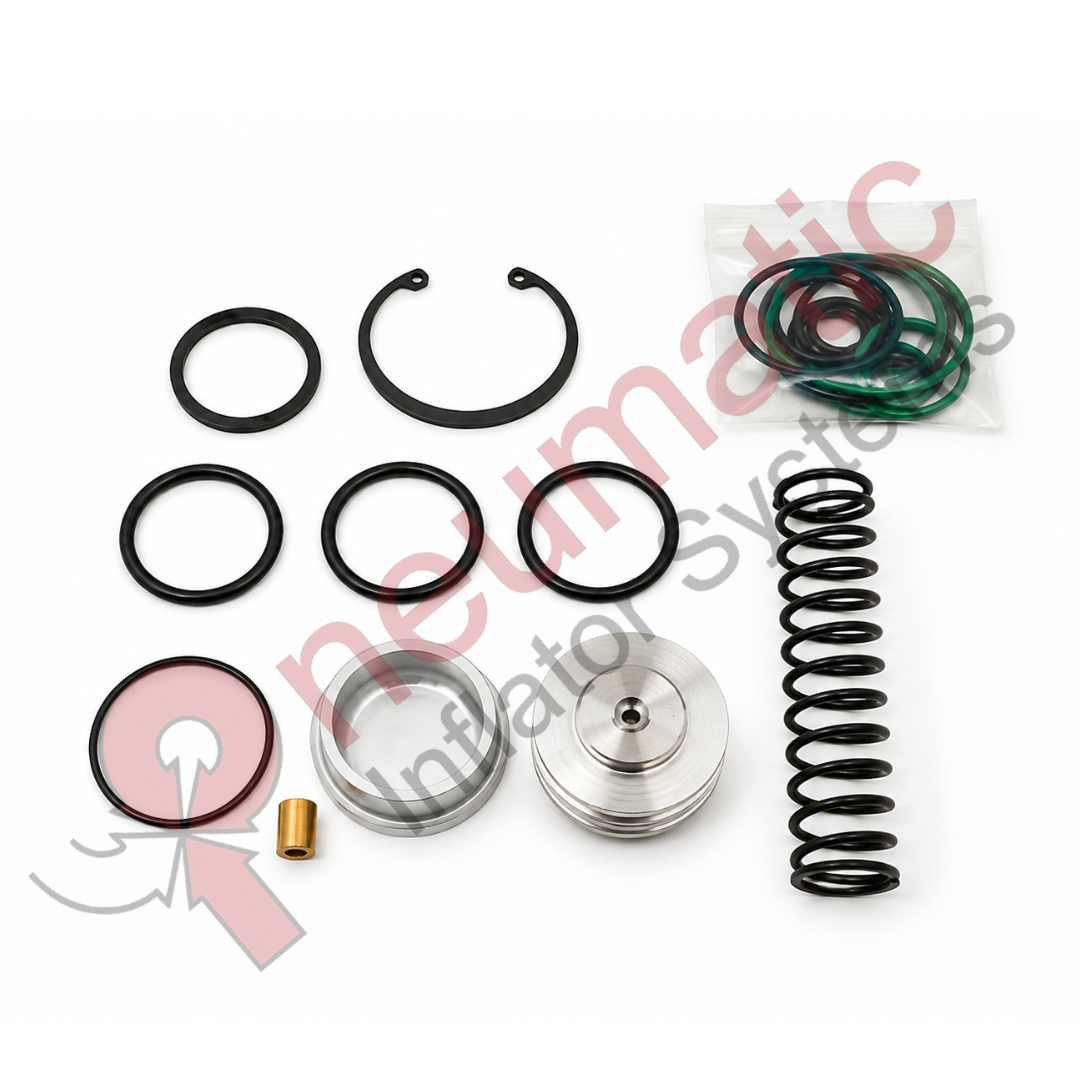

Tamrotor NT1683 – Inlet Valve Repair Kit

The NT1683 is identified as an Inlet Valve Repair Kit for Tamrotor air compressors. It is used to overhaul and restore the sealing and operating condition of the compressor’s inlet valve assembly.

The inlet valve controls the amount of atmospheric air entering the compressor during operation. Proper operation of this valve is essential for controlling compressor capacity and maintaining stable suction conditions.

Working Process:

During compressor operation, atmospheric air approaches the compressor through the intake system.

The inlet valve regulates the air entering the compressor element.

When the compressor requires air, the inlet valve opens to allow atmospheric air into the compression chamber.

When the required capacity is reached or the compressor unloads, the inlet valve changes position to restrict or stop the incoming air.

The inlet valve therefore works together with the compressor’s control system to regulate compressor loading and unloading.

Over time, valve seals and internal components can wear because of repeated movement, pressure fluctuations, temperature changes and contamination.

The NT1683 Inlet Valve Repair Kit is used during maintenance to replace applicable worn sealing and service components.

After the repair, the inlet valve should open and close correctly, allowing the compressor to transition properly between loaded and unloaded operating conditions.

Main Functions:

• Repairs the compressor inlet valve assembly.
• Restores inlet-valve sealing.
• Supports correct compressor loading.
• Supports correct compressor unloading.
• Helps regulate compressor intake airflow.
• Helps prevent unwanted air leakage.
• Supports stable compressor operation.
• Helps restore compressor capacity control.

Application References:

• Part Number: NT1683
• Description: Inlet Valve Repair Kit
• Brand: Tamrotor
• Equipment: Working/screw air compressors
• Known Application: Tamrotor EMH 26/8 EANA and F30-8 compressor references.

Inlet Valve Operating Cycle:

1. Air Intake: Atmospheric air reaches the inlet valve.
2. Loading: The valve opens to permit air into the compressor element.
3. Compression: The screw element compresses the incoming air.
4. Capacity Control: The control system regulates the inlet valve according to air demand.
5. Unloading: The valve closes or moves toward the unloaded position when full compression capacity is not required.
6. Pressure Control: The compressor reduces air intake during unloading.
7. Reloading: When system pressure falls and additional compressed air is required, the valve opens again.
8. Continuous Cycling: The valve repeatedly adjusts according to compressor demand.

Why the Repair Kit Is Required:

The inlet valve operates repeatedly throughout the compressor’s service life. Its sealing elements and moving components can eventually deteriorate.

Possible causes include:

• Normal wear.
• Seal ageing.
• Oil contamination.
• Dust or dirt contamination.
• Pressure cycling.
• Temperature cycling.
• Mechanical wear.
• Incorrect adjustment.
• Damaged internal components.

A worn inlet valve may cause:

• Poor unloading.
• Compressor running continuously.
• Excessive air intake during unloading.
• Increased energy consumption.
• Unstable compressor pressure.
• Reduced capacity-control performance.
• Air leakage.
• Difficulty maintaining required pressure.

Maintenance Procedure:

Before servicing the inlet valve, shut down the compressor using the manufacturer’s normal shutdown procedure.

Isolate the electrical supply and depressurize the compressor.

Allow the compressor to cool before beginning maintenance.

Remove the inlet valve components according to the applicable Tamrotor service procedure.

Inspect the valve for:

• Worn sealing surfaces.
• Damaged seals.
• Contamination.
• Mechanical wear.
• Damaged springs or moving components.
• Incorrect valve movement.

Remove the worn components and install the applicable replacement components supplied in the NT1683 repair kit.

Ensure all components are correctly positioned and that the valve moves freely.

Clean the mating surfaces before assembly.

After assembly, check the inlet valve for correct movement and sealing.

Restart the compressor and verify:

• Loading operation.
• Unloading operation.
• Suction/inlet pressure.
• System pressure.
• Compressor current/load.
• Air leakage.
• Stable pressure control.

Service Benefits:

Using the NT1683 Inlet Valve Repair Kit during appropriate maintenance helps:

• Restore inlet-valve performance.
• Improve loading/unloading operation.
• Reduce unwanted air leakage.
• Improve capacity control.
• Support efficient compressor operation.
• Reduce unnecessary energy consumption.
• Improve compressor reliability.
• Reduce the risk of unexpected downtime.

Technical Summary:

Part Number: NT1683
Brand: Tamrotor
Description: Inlet Valve Repair Kit
Component Type: Compressor inlet-valve service/repair kit
Primary Function: Restoration of the inlet valve’s sealing and operating performance
Operating Function: Controls atmospheric air entering the compressor element
Main Benefit: Reliable loading/unloading and improved compressor capacity control.
