ELGi Minimum Pressure Valve (MPV) Kit Replacement – B009301070014

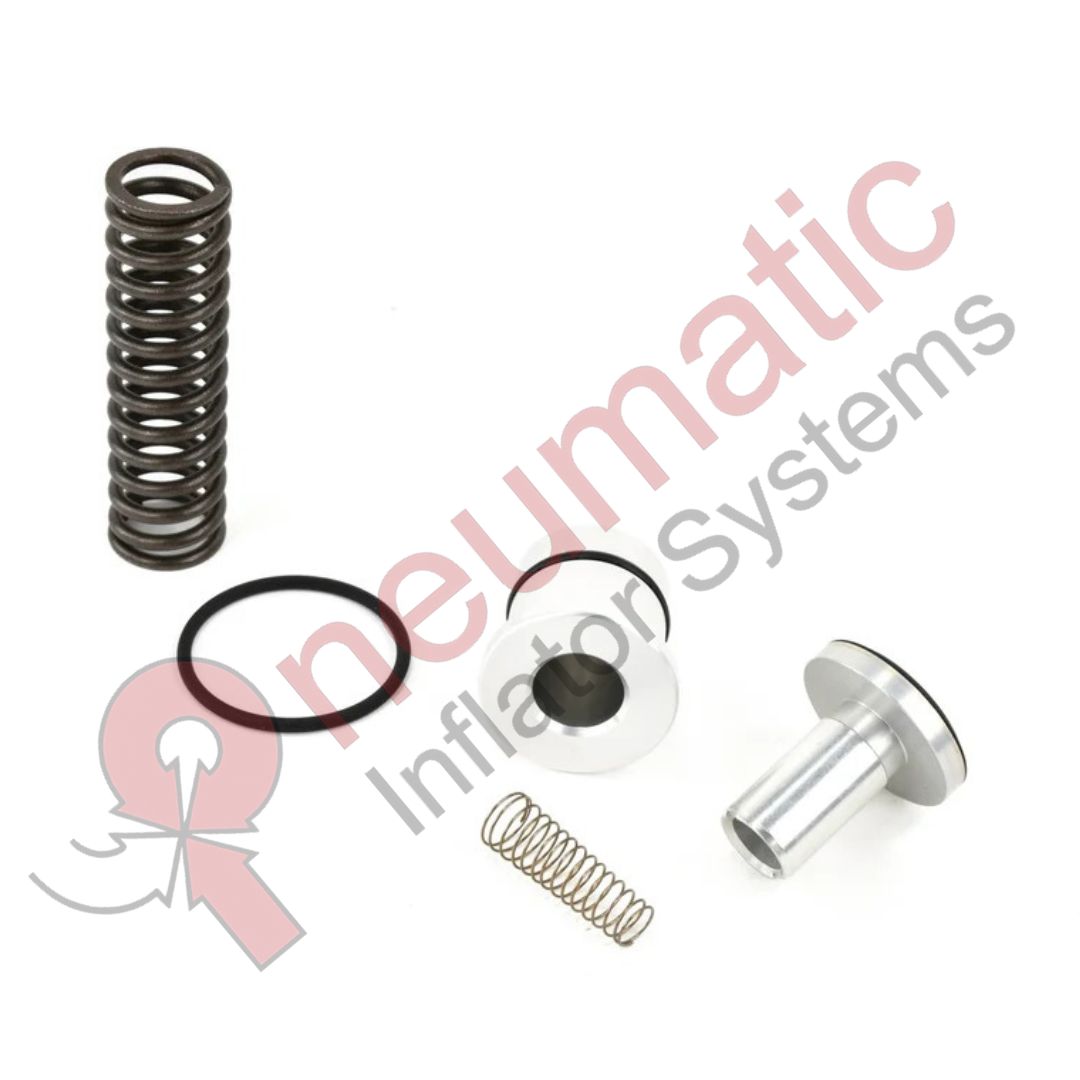

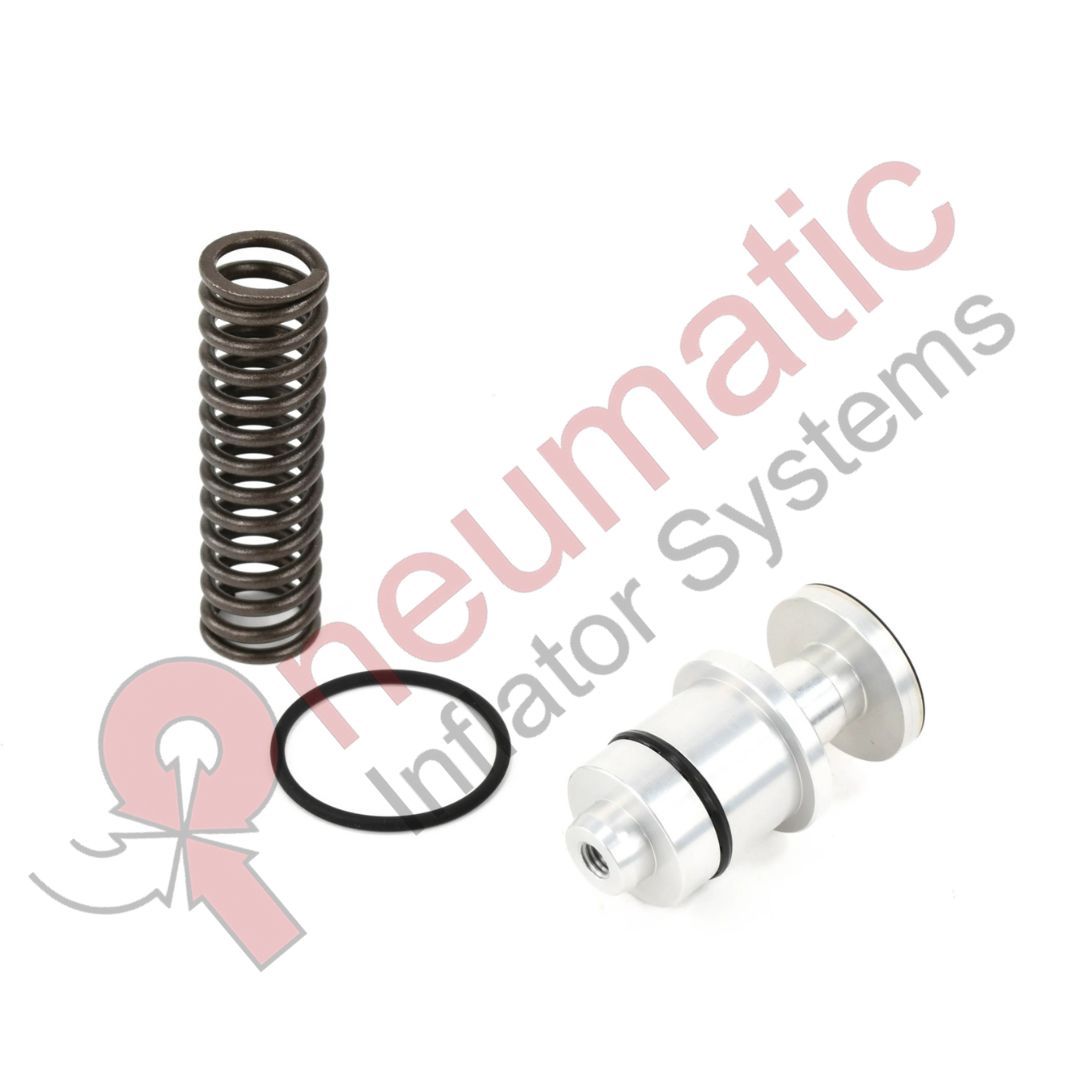

ELGi B009301070014 – Minimum Pressure Valve (MPV) Kit

The ELGi B009301070014 Minimum Pressure Valve Kit is a service and maintenance kit used in ELGi rotary screw air compressors. The Minimum Pressure Valve (MPV) controls the discharge of compressed air from the compressor’s internal separator circuit and helps maintain the minimum pressure required for proper compressor operation.

Working Process:
When the compressor starts, the MPV remains closed or partially restricted while pressure builds inside the separator vessel. This allows the compressor to quickly establish the minimum internal pressure required for proper oil circulation and air/oil separation.

As the internal pressure rises above the MPV’s opening pressure, the valve opens and allows compressed air to flow toward the downstream air system. The valve regulates this flow so that sufficient pressure is maintained inside the compressor package.

Maintaining minimum internal pressure is particularly important in an oil-injected screw compressor because the pressure difference helps circulate oil through the compressor element. The oil provides cooling, lubrication, and sealing during the compression process. Proper MPV operation therefore contributes to stable compressor temperature, lubrication, and air/oil separation.

During normal loaded operation, the MPV continuously responds to pressure differences between the compressor’s internal circuit and the downstream air network. It allows compressed air to leave the separator while preventing the internal pressure from falling below the required minimum level.

When the compressor unloads or stops, the MPV helps isolate the internal compressor circuit from downstream pressure. This reduces unwanted reverse flow and helps maintain suitable internal conditions for the next starting cycle.

The B009301070014 service kit is used when the MPV’s internal components or sealing elements become worn, damaged, contaminated, or unable to maintain the required pressure. Available references identify this part as an ELGi MPV Minimum Pressure Valve Kit for EG11–EG22 Version 3 and also as an F2-Alpha MPV Kit.

During preventive maintenance, the compressor should be isolated and completely depressurized before servicing the MPV. The existing worn components are removed, the valve body and mating surfaces are inspected and cleaned, and the replacement components from the kit are installed according to the applicable ELGi service procedure.

After reassembly, the MPV should be checked for correct opening and closing operation, leakage, and pressure regulation. A properly functioning valve should maintain the required minimum internal pressure while allowing compressed air to flow efficiently to the plant air system.

If the MPV becomes stuck, worn, contaminated, or unable to seal correctly, the compressor may experience slow pressure build-up, unstable pressure, poor oil circulation, excessive oil carryover, increased energy consumption, or incorrect loading/unloading behavior.

Correct maintenance of the B009301070014 MPV Kit helps restore pressure-control performance, maintain proper oil circulation and air/oil separation, reduce operating problems, and support reliable compressor operation.

Part Number: B009301070014
Brand: ELGi
Part Description: MPV Kit / Minimum Pressure Valve Kit
Component Type: Pressure-control valve service kit
Application: ELGi rotary screw air compressors
Known Application: EG11–EG22 Version 3 / F2-Alpha
Primary Function: Maintains minimum internal compressor pressure and controls compressed-air discharge
Main Benefits: Supports proper oil circulation, air/oil separation, pressure stability, efficient operation, and reliable compressor performance.
