Atlas Copco Wear Drain Kit Replacement – 2200902017

The Atlas Copco 2200902017 Wear Drain Kit is a genuine Atlas Copco drain maintenance kit designed to service the wear components inside compatible condensate drains used with Atlas Copco dryers and air-treatment equipment. Atlas Copco identifies the part as “KIT WEAR DRAIN” and promotes genuine parts for maintaining air quality and equipment performance.

During compressed-air production, condensation and contaminants can accumulate in the air-treatment system. The condensate drain automatically removes this collected liquid from the dryer or compressed-air system. The wear components inside the drain can deteriorate or become contaminated over time, which may affect proper drainage.

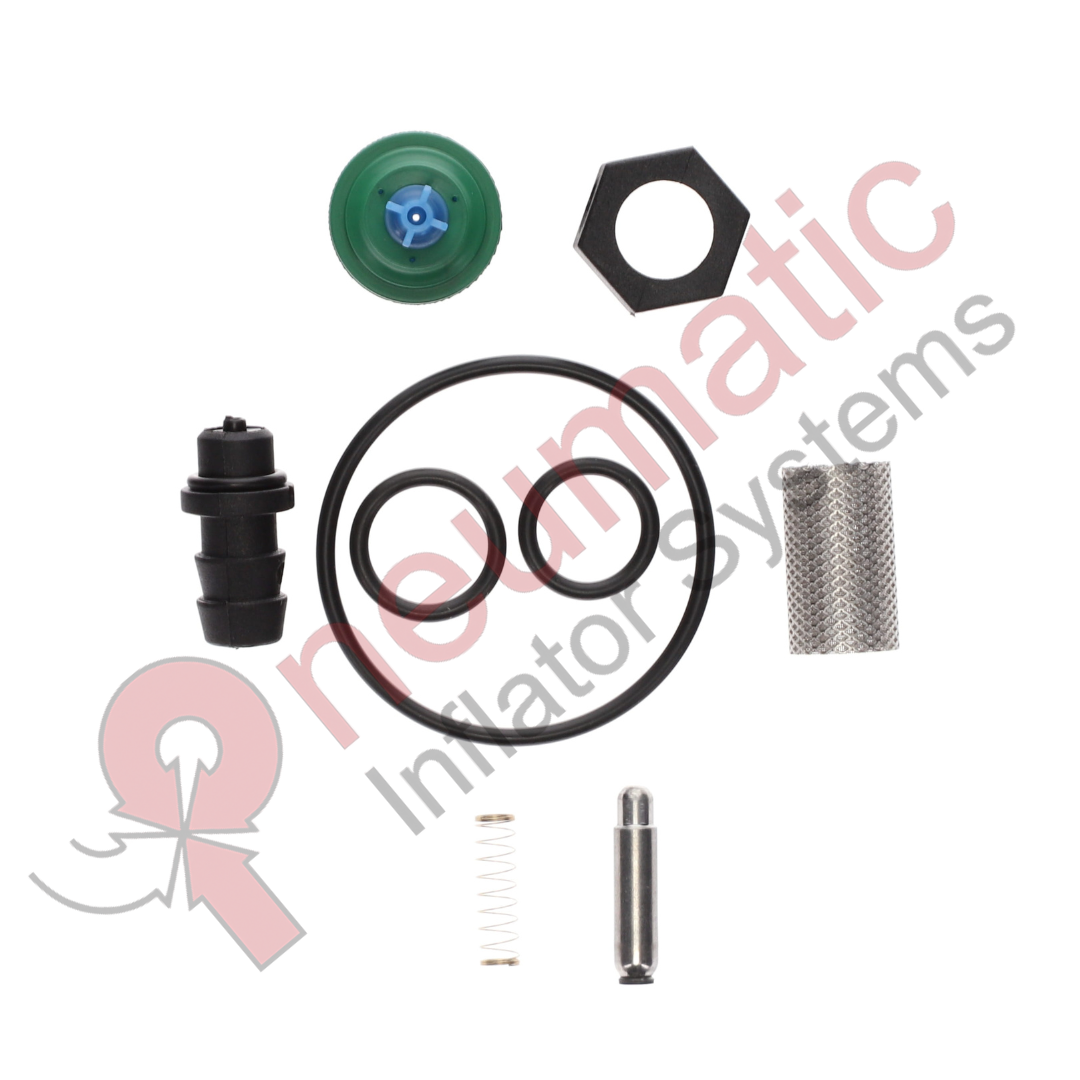

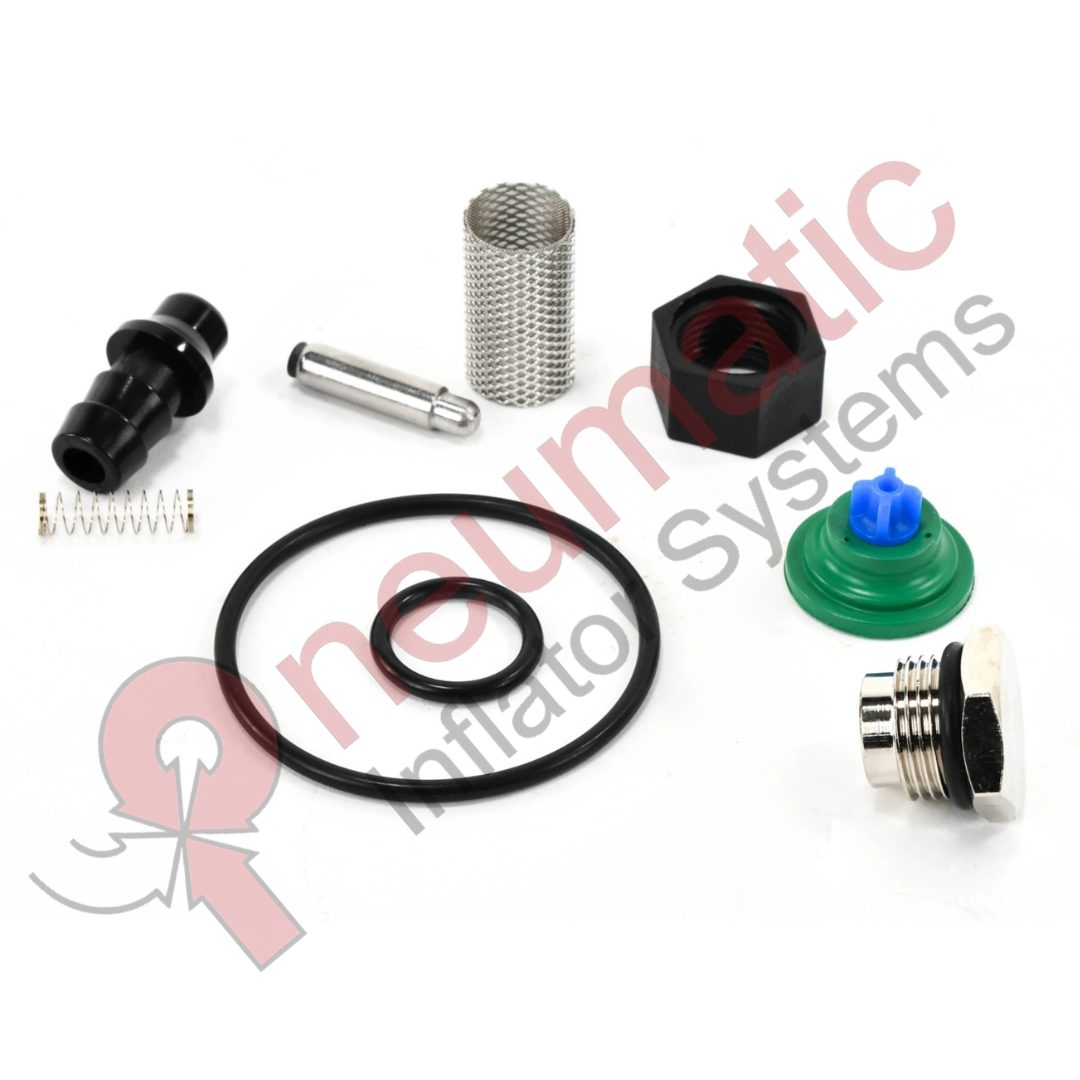

The 2200902017 drain wear kit is used during preventive maintenance to replace these wear components and restore reliable condensate-drain operation. A parts supplier describes the kit as including a filter screen, cap and two O-rings, while Atlas Copco’s official listing confirms the kit designation.

Working Process

1. Compressed-Air Generation – The compressor produces compressed air containing moisture and contaminants.
2. Cooling and Condensation – As compressed air is cooled, moisture condenses into liquid condensate.
3. Condensate Collection – The condensate accumulates in the dryer or air-treatment system.
4. Automatic Drainage – The drain removes accumulated condensate from the system.
5. Filtration – The drain’s internal filter/screen helps prevent contaminants from interfering with the drain mechanism.
6. Sealing – O-rings maintain proper sealing inside the drain assembly.
7. Wear Over Time – Continuous exposure to condensate, contaminants and operating cycles can wear the drain components.
8. Preventive Maintenance – The worn components are replaced using 2200902017.
9. Drain Restoration – A properly serviced drain can resume reliable condensate removal.
10. System Protection – Effective drainage helps prevent condensate accumulation and supports reliable air-treatment operation.

Main Functions

• Maintains the condensate drain assembly.
• Replaces worn drain components.
• Helps prevent drain blockage.
• Supports reliable condensate removal.
• Helps protect the air-treatment system from accumulated moisture.
• Maintains proper drain sealing.
• Supports efficient and reliable dryer operation.

Typical Problems from a Worn Drain

A neglected condensate drain may cause:

• Drain blockage.
• Condensate accumulation.
• Continuous air leakage.
• Increased energy consumption.
• Poor moisture removal.
• Reduced dryer performance.
• Contamination around the drain.

A third-party service description specifically notes that failure to replace the wear components can allow the drain to become clogged or remain open, potentially causing continuous air leakage and increased energy consumption.

Maintenance Procedure

1. Shut down the compressor/dryer according to the applicable Atlas Copco service procedure.
2. Isolate the equipment and depressurize the drain system.
3. Locate the condensate drain.
4. Remove the drain’s service cap/retaining component.
5. Remove the existing filter screen and worn sealing components.
6. Clean the drain housing and internal surfaces.
7. Install the replacement components supplied with 2200902017.
8. Correctly position the new O-rings.
9. Install the replacement filter screen and cap.
10. Reassemble the drain.
11. Restore system pressure gradually.
12. Check the drain for air or condensate leakage.
13. Test automatic condensate discharge.
14. Confirm that the drain opens and closes correctly.
15. Return the dryer/compressor to normal operation.

SEO Product Description

Atlas Copco 2200902017 Wear Drain Kit, also known as Atlas Copco 2200-9020-17 and 2200 9020 17, is a genuine Atlas Copco drain service kit designed for maintenance of compatible condensate drains used in Atlas Copco dryers, refrigerated air dryers and air-treatment equipment. The Atlas Copco wear drain kit helps replace worn internal drain components, maintain reliable condensate removal, support proper sealing and reduce the risk of drain blockage and unwanted compressed-air leakage. This Atlas Copco compressor spare part, Atlas Copco dryer part, Atlas Copco service kit and condensate drain maintenance kit is suitable for preventive maintenance applications where reliable moisture removal and air-treatment performance are required. Atlas Copco’s official product listing identifies 2200902017 as KIT WEAR DRAIN.
