Atlas Copco Unloader / Inlet Valve Service Kit Replacement – 2901021101

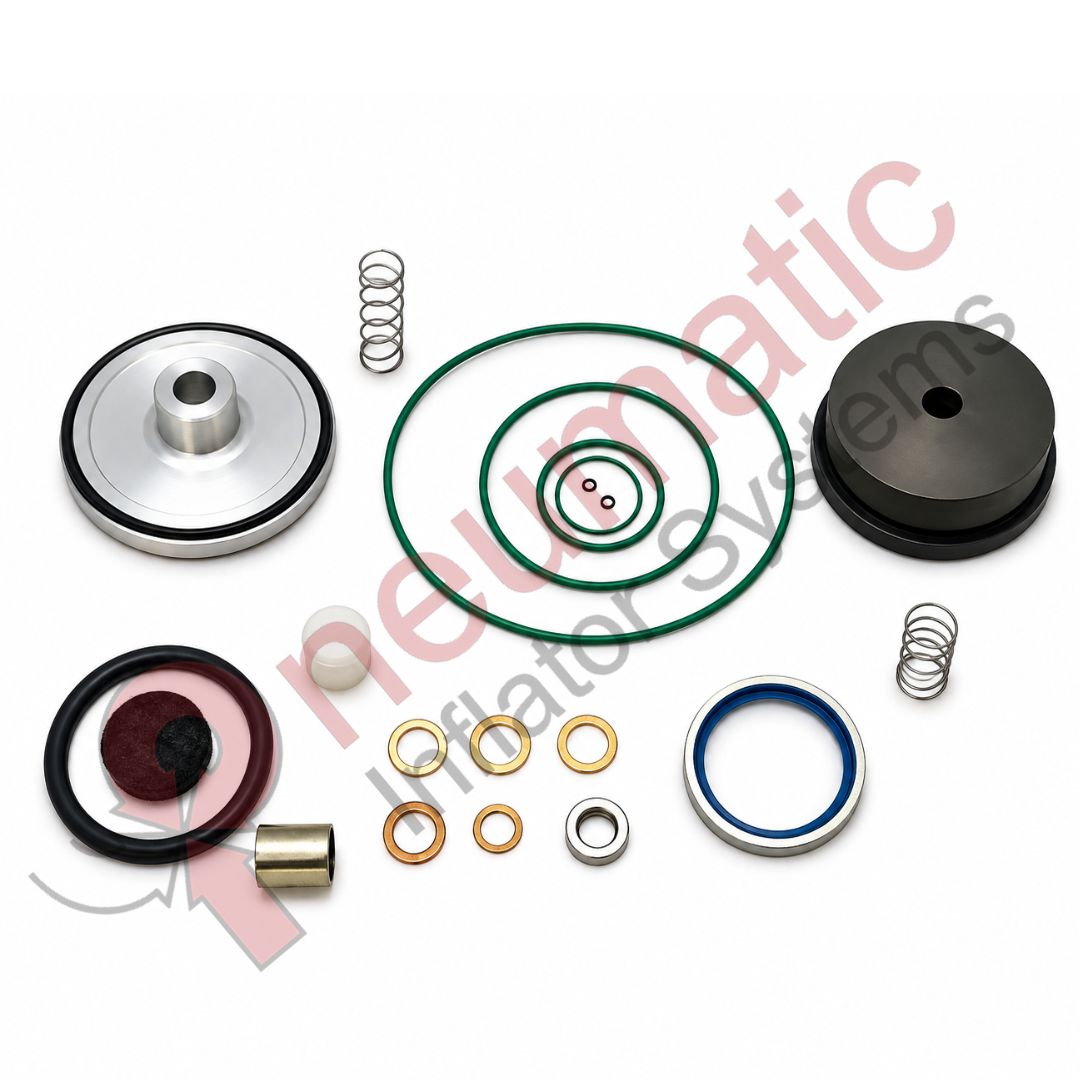

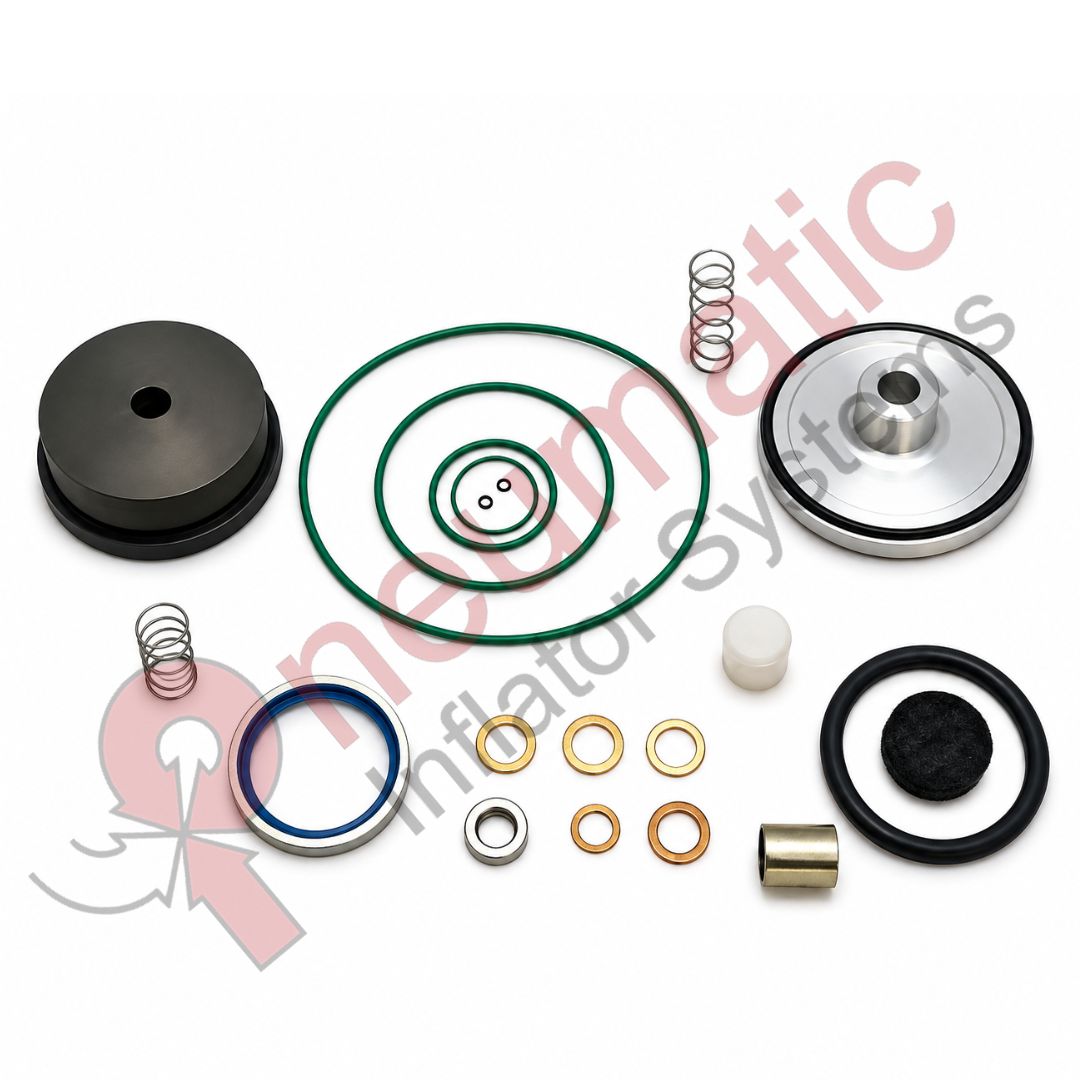

Atlas Copco 2901021101 – Unloader / Inlet Valve Service Kit

The Atlas Copco 2901021101 (2901-0211-01) is a service kit for the unloader/inlet valve assembly used in compatible screw air compressors. The part is also identified as Service Kit SCU C90-106-111 in parts references.

The inlet/unloader valve controls the amount of atmospheric air entering the compressor element and helps place the compressor into loaded or unloaded operation according to the control system’s demand.

Working Process:

During loaded operation, the inlet valve opens to allow atmospheric air to enter the compressor element. The compressor then compresses this incoming air and delivers compressed air to the downstream system.

When the required system pressure is reached, the compressor control system sends a signal to the unloader/control circuit. The inlet valve is moved toward the closed position, reducing or stopping the intake of atmospheric air.

At the same time, the compressor can unload its compression element so that it does not continue producing compressed air unnecessarily.

This reduces the compressor’s power consumption during unloaded operation and helps maintain the required system pressure.

When the downstream pressure falls below the required operating level, the control system commands the inlet/unloader valve to reopen.

The compressor then returns to loaded operation and resumes normal air production.

The 2901021101 service kit is used to restore the mechanical and sealing condition of this valve assembly when components become worn or damaged.

Main Functions:

• Controls compressor air intake.
• Supports loading and unloading operation.
• Reduces unnecessary air compression during unloaded periods.
• Helps maintain stable system pressure.
• Provides controlled opening and closing of the compressor inlet.
• Restores valve sealing and mechanical performance during servicing.

Operating Cycle:

1. Compressor Start-up: The inlet/unloader valve remains in its controlled starting position.
2. Loading: The control system opens the inlet valve and atmospheric air enters the compressor element.
3. Compression: The compressor element compresses the incoming air.
4. Pressure Reaches Set Point: The control system initiates unloading.
5. Unloading: The inlet valve closes or restricts intake, reducing compressor air production.
6. Pressure Drops: When system pressure falls to the load point, the valve reopens.
7. Loaded Operation Resumes: The compressor again produces compressed air.

This automatic cycle allows the compressor to match air production with system demand.

Valve Construction and Service Function:

The unloader/inlet valve assembly normally contains a valve body, moving valve components, sealing elements and control components.

The valve mechanism regulates the compressor’s inlet airflow.

The sealing elements prevent unwanted air leakage when the inlet valve is closed or restricted.

The control mechanism applies pneumatic or control-system force to move the valve between its operating positions.

During maintenance, the service kit replaces worn or deteriorated components so that the valve can move correctly and maintain proper sealing.

Possible Failure Conditions:

With prolonged compressor operation, the inlet/unloader valve can become contaminated with oil deposits, dust or other particles.

Sealing components may harden, deform or wear.

A sticking valve can prevent the compressor from correctly changing between loaded and unloaded conditions.

If the valve does not open fully, insufficient atmospheric air may enter the compressor element, resulting in reduced air delivery.

If the valve does not close correctly during unloading, the compressor may continue compressing air when it should be unloaded, increasing power consumption.

A leaking valve can also cause unstable pressure and inefficient compressor operation.

Typical symptoms may include:

• Compressor fails to load correctly
• Compressor fails to unload correctly
• Slow pressure build-up
• Reduced air delivery
• Excessive power consumption during unloading
• Unstable operating pressure
• Continuous or abnormal compressor loading
• Air leakage around the inlet valve
• Valve sticking or delayed response

Maintenance Procedure:

Before servicing the inlet/unloader valve, the compressor must be stopped, electrically isolated and completely depressurized according to the applicable Atlas Copco safety procedure.

The valve assembly should be inspected for:

• Contamination
• Worn sealing components
• Damaged valve surfaces
• Sticking or restricted movement
• Air leakage
• Damaged control components
• Abnormal loading/unloading behavior

The existing worn components should be removed carefully without damaging the valve body or mating surfaces.

The 2901021101 service kit should be installed according to the applicable Atlas Copco service instructions.

All sealing surfaces should be thoroughly cleaned before assembly.

Seals and other service components must be installed in their correct positions and should not be twisted, cut or damaged during installation.

The valve should be checked for smooth movement before the compressor is returned to service.

After assembly, the compressor should be restarted and monitored through several load/unload cycles.

The technician should verify that:

• The inlet valve opens correctly during loading.
• The valve closes/restricts correctly during unloading.
• Compressor pressure rises normally.
• The compressor unloads at the correct control condition.
• No abnormal air leakage is present.
• The compressor returns smoothly from unloaded to loaded operation.

Correct operation of the inlet/unloader valve helps the compressor produce air efficiently while avoiding unnecessary compression during unloaded periods.

Using the Atlas Copco 2901021101 service kit during appropriate maintenance helps restore inlet-air control, loading/unloading response, valve sealing and overall compressor efficiency.

Part Number: 2901021101
Alternative Number: 2901-0211-01 / 2901 0211 01
Brand: Atlas Copco
Part Description: Unloader Valve / Inlet Valve Service Kit
Service Kit Reference: SCU C90-106-111
Component Type: Compressor inlet/unloader valve service kit
Primary Function: Controls compressor inlet airflow
Secondary Function: Supports automatic loading and unloading
Operating Function: Opens during loading and restricts/closes during unloading according to compressor control signals
Main Benefits: Stable pressure control, efficient compressor loading/unloading, reduced unloaded power consumption, improved valve sealing and reliable compressor operation.
