Atlas Copco Inlet Valve Overhaul Kit Replacement – 2901110100

Atlas Copco 2901110100 – Inlet Valve Overhaul Kit

The Atlas Copco 2901110100 (2901-1101-00) Inlet Valve Kit is a maintenance and overhaul kit used to service the inlet valve assembly of compatible Atlas Copco rotary screw compressors. The inlet valve controls the amount of atmospheric air entering the compressor air end and plays an important role in compressor loading, unloading, capacity regulation, and efficient operation.

Working Process:

During compressor start-up, the inlet valve is maintained in the appropriate start position so that the compressor can accelerate with minimum load. The pneumatic control system supplies the required control signal to the inlet/unloader mechanism.

Once the compressor reaches operating speed, the control system changes the pneumatic signal. The inlet valve progressively opens, allowing atmospheric air to enter the compressor air end.

Inside the compressor element, the rotating screw rotors compress the incoming air. The compressed air is then transferred through the compressor’s internal discharge system toward the downstream air-treatment or process system.

During loaded operation, the inlet valve regulates the quantity of air entering the compressor according to the required operating condition. By controlling inlet airflow, the compressor can adjust its capacity and maintain the required pressure.

When the required system pressure is reached, the compressor control system initiates unloading. The pneumatic actuator changes the position of the inlet valve, restricting or closing the air inlet. This reduces the amount of air entering the compressor element and decreases the compression load.

The inlet valve therefore helps the compressor transition between loaded and unloaded operation. Proper inlet-valve movement is essential for stable pressure control, efficient power consumption, and reliable compressor starting and stopping.

The 2901110100 kit is used when internal inlet-valve components become worn, contaminated, damaged, or unable to provide proper sealing and movement. Atlas Copco parts references identify 2901110100 as “KIT, INLET VALVE”, while other listings describe it as an Inlet Valve Overhaul Kit.

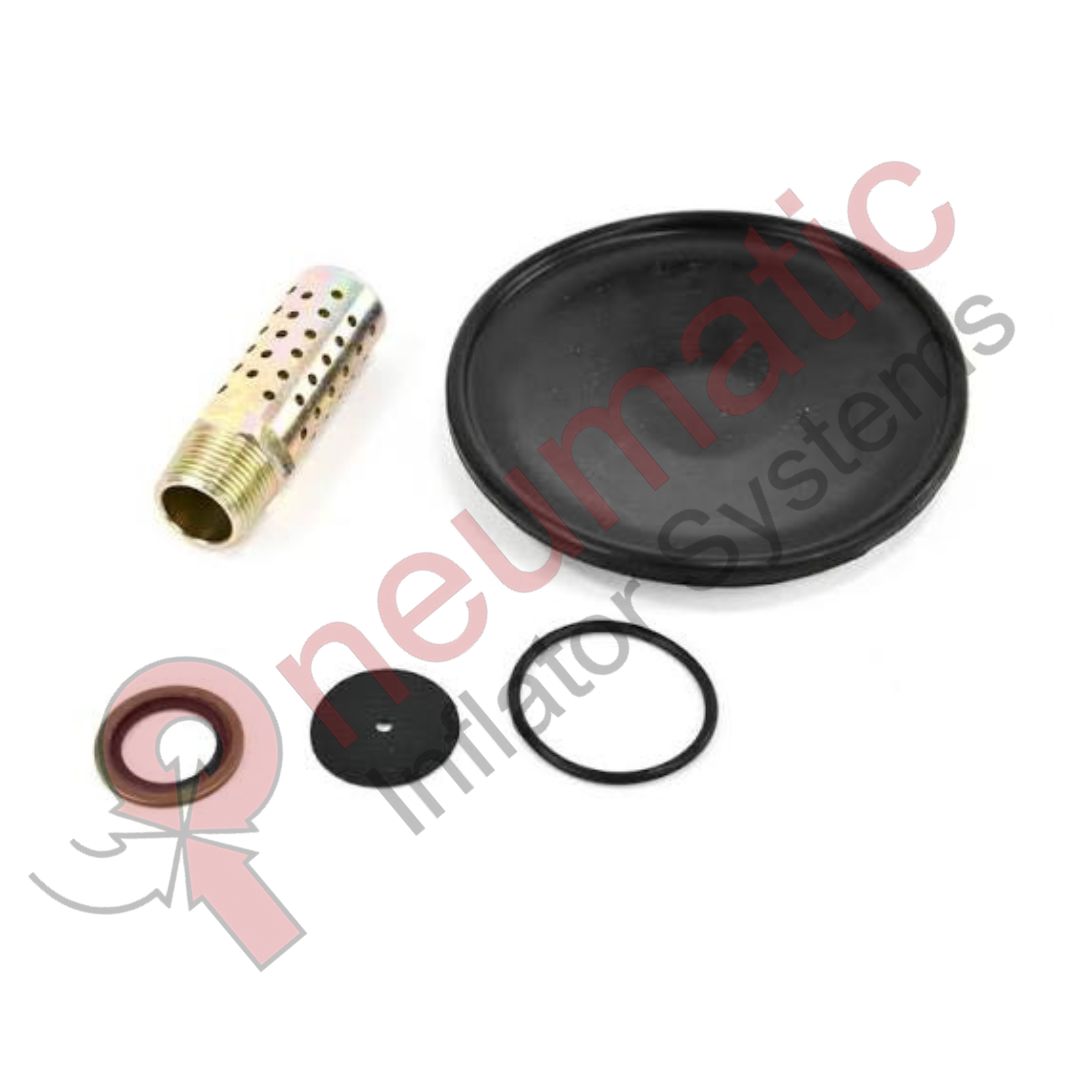

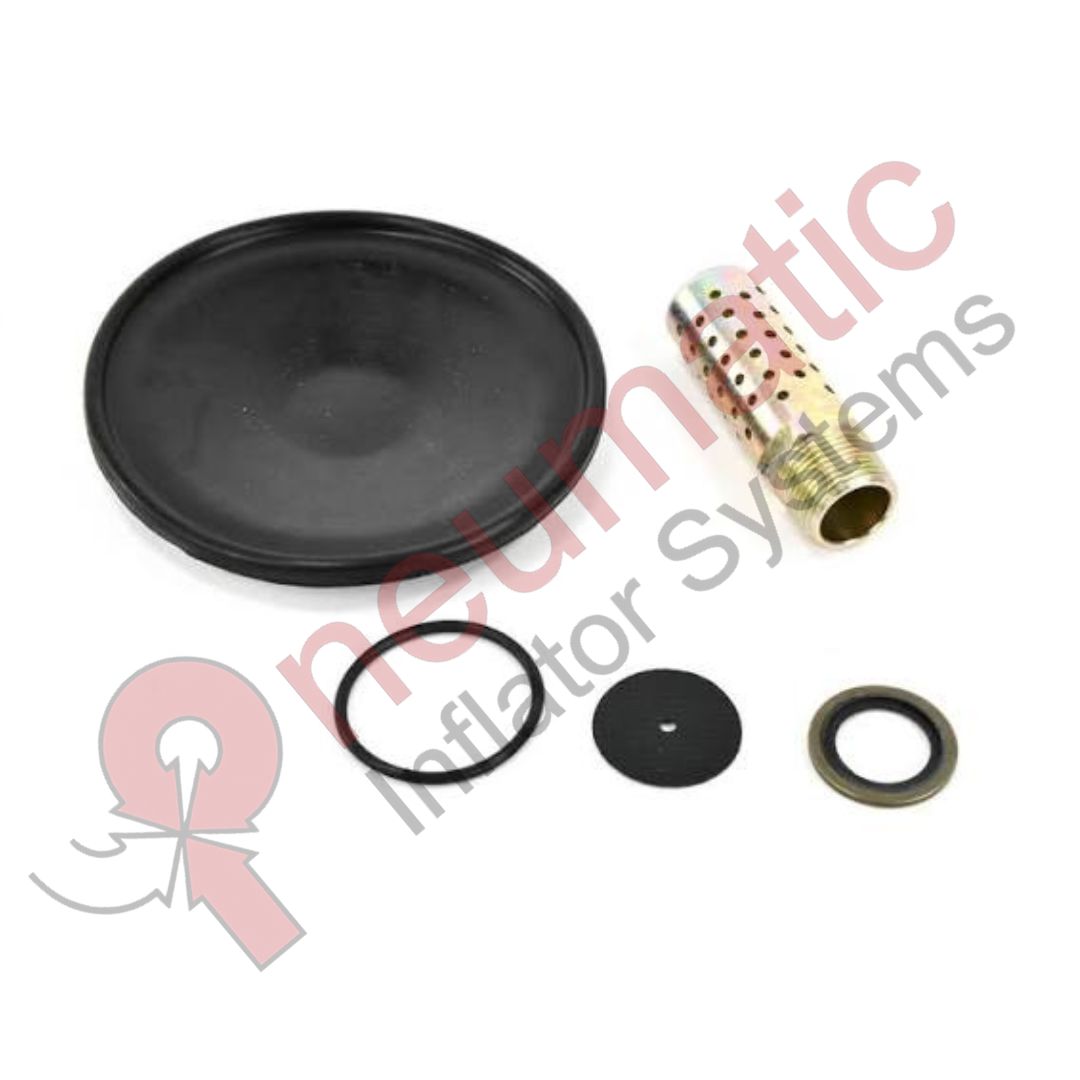

The service kit can include replacement components such as the valve shaft, diaphragm, sealing rings, rubber elements, gaskets, and other internal service parts required to restore the inlet valve assembly.

During normal operation, the inlet valve is exposed to pressure fluctuations, vibration, temperature changes, oil mist, and repeated opening and closing cycles. Over time, diaphragms and sealing components can harden, crack, deform, or lose their sealing capability.

A worn inlet valve can cause several operating problems. If the valve does not close correctly during unloading, the compressor may continue drawing air and consume unnecessary power. If it does not open correctly during loading, compressor capacity may be reduced.

A leaking inlet valve can also cause unstable pressure regulation, prolonged loading/unloading cycles, poor starting performance, increased energy consumption, and abnormal compressor operation.

During maintenance, the compressor must be stopped, electrically isolated, completely depressurized, and allowed to cool before the inlet valve is dismantled.

The valve assembly should be inspected for contamination, wear, damaged diaphragms, worn sealing surfaces, damaged springs or mechanical components, and incorrect actuator movement. The valve housing and air passages should also be cleaned before reassembly.

The worn components should be replaced using the parts supplied in the 2901110100 overhaul kit. Each sealing component must be installed in the correct orientation, and the valve mechanism must move freely without sticking.

After reassembly, the compressor should be tested through its complete start-up, loading, unloading, and shutdown sequence.

During testing, the inlet valve should open smoothly when the compressor loads and close or restrict correctly when the compressor unloads. The system should also be checked for abnormal air leakage, unstable pressure, excessive vibration, or unusual operating noise.

Correct operation of the inlet valve ensures that the compressor receives the required amount of inlet air while preventing unnecessary airflow during unloaded operation.

Using the Atlas Copco 2901110100 Inlet Valve Overhaul Kit helps restore inlet-air control, reliable loading and unloading, proper pressure regulation, reduced air leakage, improved energy efficiency, and dependable compressor performance.

Part Number: 2901110100
Alternative Number: 2901-1101-00 / 2901 1101 00
Brand: Atlas Copco
Part Description: Inlet Valve Kit / Inlet Valve Overhaul Kit
Component Type: Compressor inlet-air control valve service kit
Application: Atlas Copco rotary screw / oil-free compressor systems
Known Application: ZT37VSD compressor configurations are documented with this part number.
Primary Function: Controls air entering the compressor element
Operating Function: Supports compressor loading, unloading, and capacity regulation
Maintenance Function: Replaces worn inlet-valve sealing and internal service components
Main Benefits: Reliable inlet-air control, stable pressure regulation, efficient unloading, reduced leakage, lower unnecessary power consumption, and dependable compressor operation.
