Atlas Copco Hour Maintenance Kit Replacement – 2906080900

The Atlas Copco 2906080900 is an 8,000-hour maintenance kit designed for MD1000/1300W air-treatment equipment. The kit contains multiple replacement sealing, filtration, cooling and wear components required during major scheduled maintenance. Atlas Copco identifies it as an MD1000-1300W 8000H Maintenance Kit.

The purpose of the kit is to restore the condition of critical service components after extended operation, helping maintain proper air treatment, condensate management, sealing and equipment reliability.

Working Process

1. Compressed-Air Treatment – Compressed air enters the MD air-treatment system.
2. Cooling/Condensation – Air is cooled, causing moisture to condense.
3. Condensate Management – The system separates and drains accumulated condensate.
4. Air Separation – Internal components such as demisters and separators help remove moisture or contaminants.
5. Sealing – Gaskets, O-rings and sealing rings maintain pressure-tight connections.
6. Flow Control – Strainers and internal components maintain proper flow through the equipment.
7. Continuous Operation – The equipment provides treated compressed air to the downstream system.
8. Scheduled Maintenance – At the specified service interval, worn components are replaced using the 2906080900 kit.

Main Functions

• Provides components for 8,000-hour scheduled maintenance.
• Maintains effective air-treatment performance.
• Replaces worn sealing components.
• Supports condensate/moisture separation.
• Maintains proper flow through the equipment.
• Helps prevent air and fluid leakage.
• Restores the condition of wear components.
• Supports reliable long-term operation.

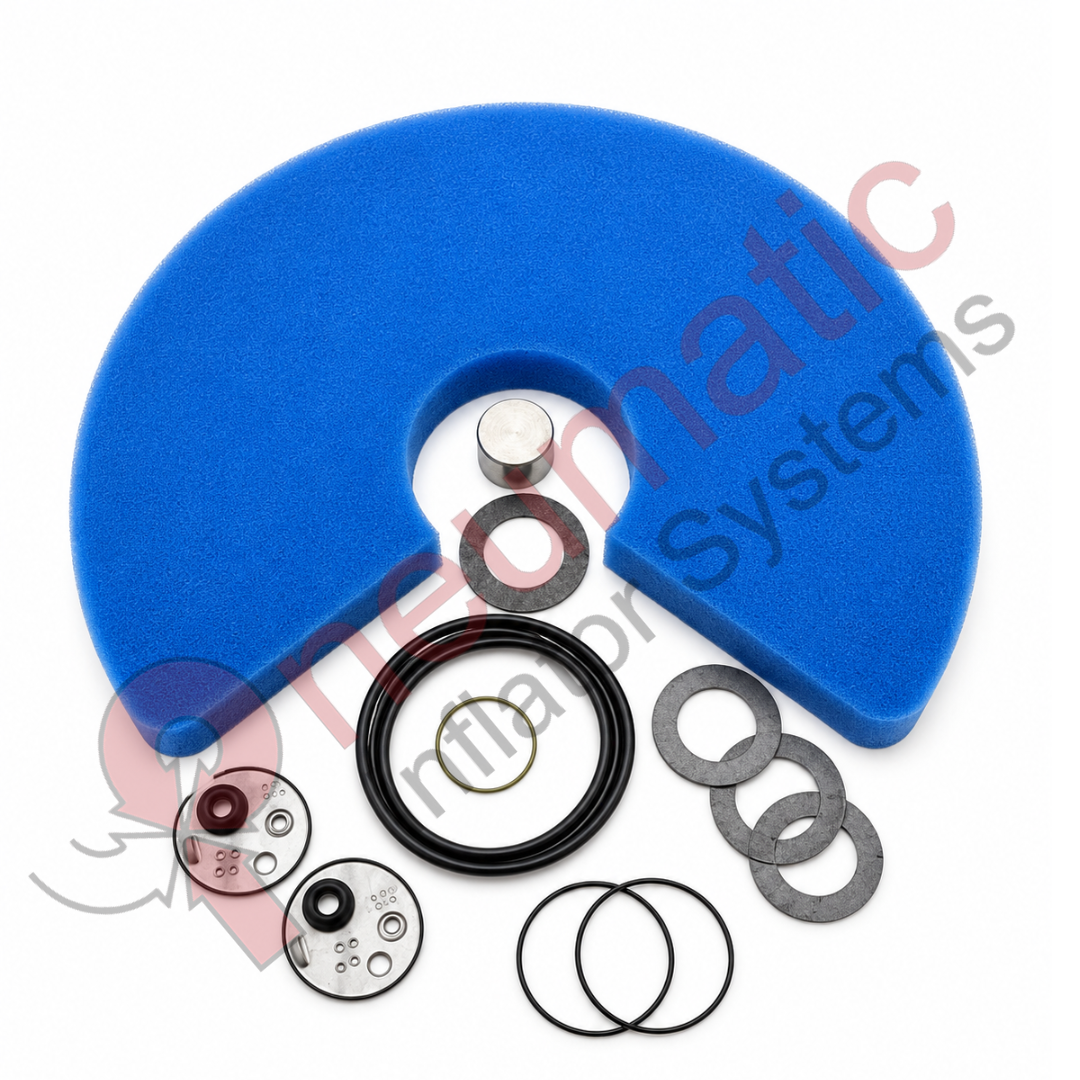

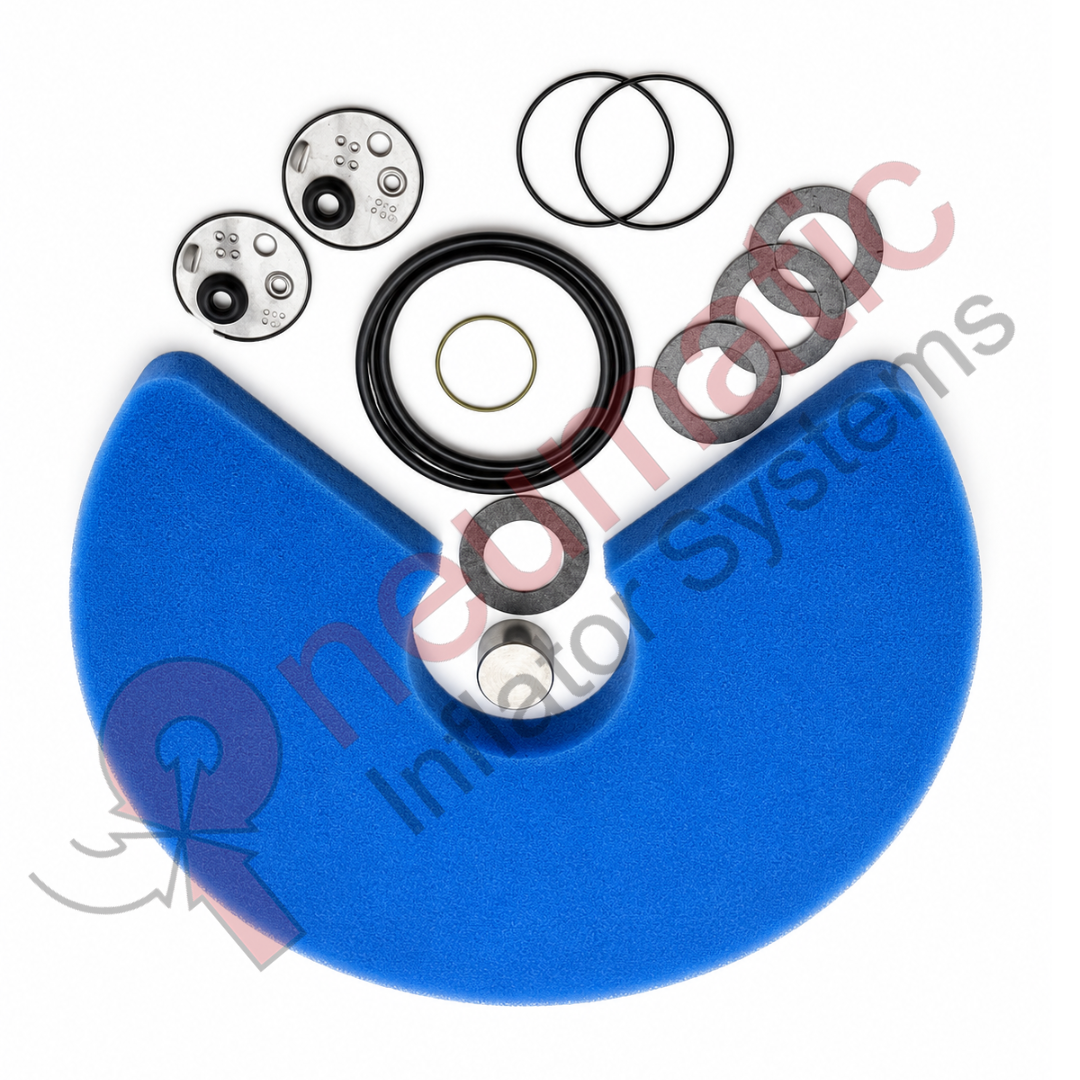

Official Kit Components

Atlas Copco lists components including:

Possible Failure Symptoms Without Scheduled Maintenance

If worn components are not replaced at the recommended interval, the equipment may experience:

• Air leakage.
• Reduced cooling performance.
• Poor condensate separation.
• Increased pressure drop.
• Contamination of downstream air.
• Increased operating temperature.
• Excessive wear.
• Reduced equipment efficiency.
• Unexpected shutdowns.

Maintenance Procedure

1. Shut down the equipment according to the applicable Atlas Copco service procedure.
2. Isolate electrical and pneumatic supplies.
3. Fully depressurize the system.
4. Allow hot components to cool.
5. Drain applicable condensate/fluid circuits.
6. Open the required service areas.
7. Inspect internal components for wear, contamination and corrosion.
8. Remove old gaskets, O-rings, seals, strainers and other scheduled components.
9. Clean the mating and sealing surfaces.
10. Install the replacement components supplied with 2906080900.
11. Check that O-rings and seals are correctly seated.
12. Replace the demister and wearing parts as specified.
13. Reassemble the equipment.
14. Restore the air and service connections.
15. Restart the system.
16. Check for leakage.
17. Verify correct cooling, drainage and air-treatment performance.

Service Benefits

Using the 2906080900 8,000-hour maintenance kit helps:

• Restore equipment performance after extended operation.
• Maintain effective air treatment.
• Improve sealing.
• Maintain condensate separation.
• Reduce leakage and pressure losses.
• Protect downstream equipment.
• Improve reliability.
• Reduce unexpected downtime.

Technical Summary

Recommended catalog title:
Atlas Copco 2906080900 – MD1000/1300W 8,000-Hour Maintenance Kit for Air Treatment Equipment, 2906-0809-00.

Atlas Copco’s current official listing confirms the MD1000-1300W 8000H Maintenance Kit, its 2.99 kg weight and component list.
